Collect logs on demand with the Azure Local disconnected operations PowerShell module

This article explains how to collect logs on demand for Azure Local disconnected operations by using the PowerShell module. You learn how to provide logs for troubleshooting and support when Azure Local operates in disconnected mode.

Overview

Log collection is essential for diagnosing and troubleshooting issues in Azure Local disconnected operations. Use this feature to give logs to Microsoft support. The logs include information about the Azure Local disconnected operations environment, like the management endpoint, integrated runtime, and other components. During log collection, you might see errors because of different environmental or tooling limitations.

Supported scenarios

The following on-demand scenarios are supported for log collection:

Azure Local disconnected when the appliance VM isn't connected to Azure

In disconnected Azure Local environments, collect logs from the control plane (appliance) and host nodes, then manually upload them with a standalone tool.

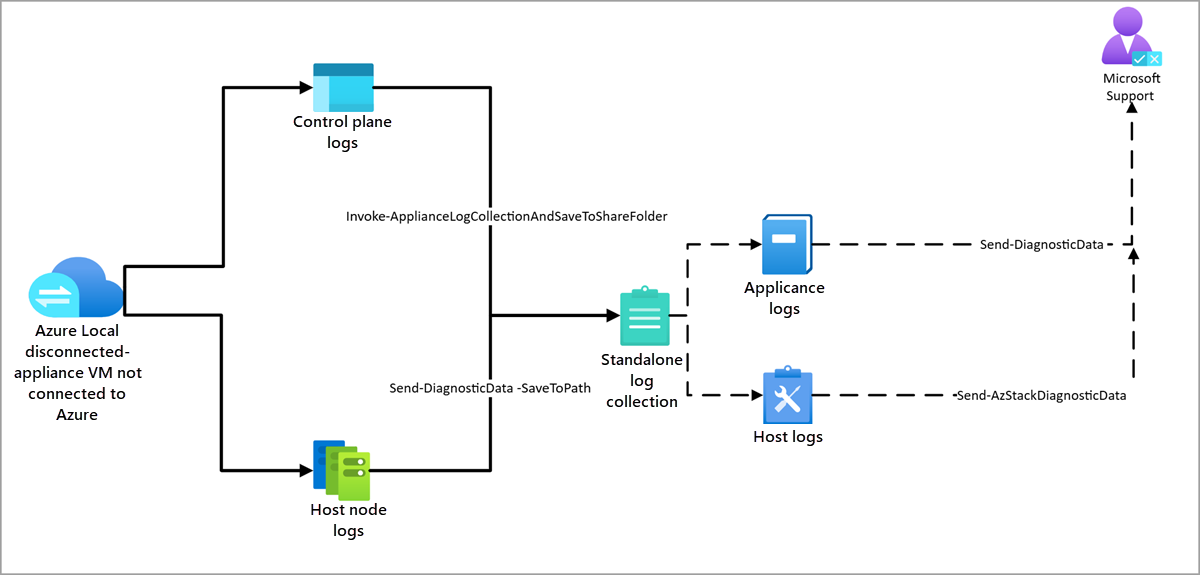

The following diagram shows key components for log collection in Azure Local disconnected environments when the appliance VM isn't connected to Azure:

To collect logs from the control plane, follow these steps:

1. Collect control plane logs. Run this command on a system that can access the appliance VM (usually the same Hyper-V host):

   Invoke-ApplianceLogCollectionAndSaveToShareFolder


   This command gathers logs from the appliance VM and saves them to the specified shared folder.

2. Collect host node logs. On each Azure Local host node, run this command:

   Send-DiagnosticData -SaveToPath <shared folder path>


   This command collects logs specific to the node, including system and cluster level diagnostics.

   For more information on the Send-DiagnosticData command, see Telemetry and diagnostics extension.

3. Upload logs by using the standalone observability tool.

   After you save logs from both the appliance and host nodes to a shared ___location, upload them with the standalone observability tool. These are product specific wrappers around Microsoft.AzureStack.Observability.Standalone.

   • For appliance logs: Use the tool version that supports logs collected with Send-DiagnosticData.
   • For host node logs: Use the Send-AzStackHciDiagnosticData command to upload logs from the host node.

Relevant cmdlets documentation

Use the Invoke-ApplianceLogCollectionAndSaveToShareFolder cmdlet to copy logs from disconnected operations appliance VM to a shared folder. You can review the logs locally or upload them to Microsoft with the Send-DiagnosticData cmdlet. You can use this when disconnected operations appliance VM management endpoint is accessible.

Trigger log collection in your disconnected environment by running Invoke-ApplianceLogCollectionAndSaveToShareFolder.

Before you trigger a log collection, create a share and credentials for a share.

1. Create a share. Run this command:

   New-SMBShare -Name `<share-name>` -Path `<path-to-share>` -FullAccess Users -ChangeAccess 'Server Operators'


2. Create PSCredential's to the share. Replace the placeholder <share-name> and <path-to-share> with your own values and run this command:

   $user = "<username>"
   $pass = "<password>"
   $sec=ConvertTo-SecureString -String $pass -AsPlainText -Force
   $shareCredential = New-Object System.Management.Automation.PSCredential ($user, $sec)


3. Trigger log collection with the Invoke-ApplianceLogCollectionAndSaveToShareFolder cmdlet. Replace the placeholder text <File Share Path> and <Share Folder Password> with your own values.

   Example:

   $fromDate = (Get-Date).AddMinutes(-30)
   $toDate = (Get-Date)
   $operationId = Invoke-ApplianceLogCollectionAndSaveToShareFolder -FromDate $fromDate -ToDate $toDate `
   -LogOutputShareFolderPath "<File Share Path>" -ShareFolderUsername "ShareFolderUser" -ShareFolderPassword (ConvertTo-SecureString "<Share Folder Password>" -AsPlainText -Force)


   Example output:

   PS C:\Users\administrator.s46r2004\Documents> $operationId = Invoke-ApplianceLogCollectionAndSaveToShareFolder -FromDate $fromDate -ToDate $toDate -LogOutputShareFolderPath "\\<LogShareName>\$logShareName" -ShareFolderUsername "<Username>.masd.stbtest.microsoft.com\administrator" -ShareFolderPassword (ConvertTo-SecureString "<Password>" -AsPlainText -Force)

   VERBOSE: [2023-04-09 22:34:28Z] [Invoke-ApplianceLogCollectionAndSaveToShareFolder] Trigger log collections with parameters:
   https://<IP address>/logs/logCollectionIndirectJob
   VERBOSE: [2023-04-09 22:34:28Z] [Invoke-ScriptsWithRetry] Executing 'Trigger log collection ...' with timeout 600 seconds ...
   VERBOSE: [2023-04-09 22:34:28Z] [Invoke-ScriptsWithRetry] [CHECK] [Attempt 0] for task 'Trigger log collection ...' ...
   VERBOSE: [2023-04-09 22:34:28Z] [Invoke-ScriptsWithRetry] Task 'Trigger log collection ...' succeeded.
   VERBOSE: [2023-04-09 22:34:28Z] [Invoke-ApplianceLogCollectionAndSaveToShareFolder] Log collections trigger result: "<Instance Id>"

   PS C:\Users\administrator.s46r2004\Documents> $onDemandRequestBody
   Name        Value
   ----        -----
   SaveToPath  \\<IP address>\Arc\LogsShare1
   FromDate    2025-04-09T21:26:51.8237434+00:00
   UserName    masd.stbtest.microsoft.com\administrator
   ToDate      2025-04-10T21:56:50.7453871+00:00
   UserPassword <Password>


Get-ApplianceLogCollectionJobStatus

Use this cmdlet to check the status of the log collection job.

Example:

Get-ApplianceLogCollectionJobStatus -OperationId $OperationId

Example output:

   PS C:\Users\administrator.s46r2004\Documents> Get-ApplianceLogCollectionJobStatus -OperationId $operationId
   VERBOSE: [2023-04-09 22:35:29Z] [Invoke-ScriptsWithRetry] Executing 'Get log collection job status ...' with timeout 600 seconds ...
   VERBOSE: [2023-04-09 22:35:29Z] [Invoke-ScriptsWithRetry] [CHECK] [Attempt 0] for task 'Get log collection job status ...' ...
   VERBOSE: [2023-04-09 22:35:29Z] [Invoke-ScriptsWithRetry] Task 'Get log collection job status ...' succeeded.

   StatusRecord
   @{Instance Id=<Instance Id>; State=Running; StartTime=0001-01-01T00:00:00; EndTime=0001-01-01T00:00:00}

Get-ApplianceLogCollectionHistory

Use this cmdlet to get log collection history. The input parameter FromDate takes DateTime type, which is the start time of the history search window. When the FromDate isn't specified, the cmdlet searches the last 3 hours.

Example:

   Get-ApplianceLogCollectionHistory -FromDate ((Get-Date).AddHours(-6))

Get-ApplianceInstanceConfiguration

Use this cmdlet to get the appliance instance configuration that includes the stamp id, resource id (device ARM resource URI).

   $stampId = (Get-ApplianceInstanceConfiguration).StampId

Example

    PS G:\azurelocal\> Get-ApplianceInstanceConfiguration
    VERBOSE: [2025-08-06 00:00:35Z][Invoke-ScriptsWithRetry][Get-ApplianceInstanceConfiguration] Executing 'Retrieving system configuration ...' with timeout 300 seconds ...
    VERBOSE: [2025-08-06 00:00:35Z][Invoke-ScriptsWithRetry][Get-ApplianceInstanceConfiguration] [CHECK][Attempt 0] for task 'Retrieving system configuration ...' ...
    VERBOSE: [2025-08-06 00:00:35Z][`ScriptBlock`] Getting system configuration from https://169.254.53.25:9443/sysconfig/SystemConfiguration
    VERBOSE: [2025-08-06 00:00:35Z][Invoke-ScriptsWithRetry][Get-ApplianceInstanceConfiguration] Task 'Retrieving system configuration ...' succeeded.


    IsAutomaticUpdatePreparation :
    ExternalTimeServers          :
    IsTelemetryOptOut            : False
    ExternalDomainSuffix         : autonomous.cloud.private
    ImageVersion                 : 7.1064750419.18210
    IngressNICPrefixLength       : 24
    DeviceARMResourceUri         : /subscriptions/5acadb2e-3867-4158-a581-cf7bd9569341/resourceGroups/arcaobs/providers/Microsoft.Edge/winfields/7dfd0b
    ConnectionIntent             : Connected
    StampId                      : 8801e7bf-846b-462d-a5c3-829514cf0b1b
    IngressNICIPAddress          : 10.0.50.4
    DnsForwarderIpAddress        : 10.10.240.23
    IngressNICDefaultGateway     : 10.0.50.1

Send-DiagnosticData

After you collect logs into a directory, either by using the nvoke-ApplianceLogCollectionAndSaveToShareFolder or Copy-DiagnosticData cmdlet or by copying them manually, send them to Microsoft with the standalone pipeline. This pipeline connects the host machine to Azure, targets all the logs in a user-provided folder ___location, and sends them to Microsoft Support. Log upload is attempted up to three times total in case of failure and the cmdlet outputs the results of the send activity on completion.

The Send-DiagnosticData cmdlet requires subscription details, i.e. the ResourceGroupName, SubscriptionId, TenantId, and RegistrationRegion *. It also requires credentials, either via manual login or by providing the appropriate service principal with password. (See Observability Configuration setup section for steps to create resource group, service principal required to upload logs.)

You will need to run Send-DiagnosticData on Windows machine connected to internet. You will not be able to run this on Azure Local Hosts as they can’t use Azure as Arc Control Plane when disconnected operations already configured. When this cmdlet runs, it will connect the machine to Azure using Arc Registration so the device can upload data to Microsoft support. Note: The RegistrationRegion is equivalent to Location within ObservabilityConfiguration.

Intended for use in cases where direct log collection from appliance VM is unavailable. It could be either due to control plane appliance VM is having issues where management endpoint is not accessible or appliance VM is disconnected from Azure

Syntax

This option triggers a manual login via device code for permissions:

Send-DiagnosticData -ResourceGroupName <String> -SubscriptionId <String> -TenantId <String> [-RegistrationWithDeviceCode] -RegistrationRegion <String> [-Cloud <String>] -DiagnosticLogPath <String> [-ObsRootFolderPath <String>] [-StampId <Guid>] [<CommonParameters>]

This option uses service principal credentials:

Send-DiagnosticData -ResourceGroupName <String> -SubscriptionId <String> -TenantId <String> -RegistrationWithCredential <PSCredential> -RegistrationRegion <String> [-Cloud <String>] -DiagnosticLogPath <String> [-ObsRootFolderPath <String>] [-StampId <Guid>] [<CommonParameters>]

Parameters

• ResourceGroupName <String>

  • Azure Resource group name where temporary Arc resource will be created.

• SubscriptionId <String>

  • Azure SubscriptionID where temporary Arc resource will be created.

• TenantId <String>

  • Azure TenantID where temporary Arc resource will be created.

• RegistrationWithDeviceCode [<SwitchParameter>]

  • Switch to use device code for authentication. This is the default if Service Principal credentials (-RegistrationWithCredential {creds}) is not provided.

• RegistrationWithCredential <PSCredential>

  • Service Principal credentials used for authentication to register ArcAgent.

• RegistrationRegion <String>

  • Azure registration region where Arc resource will be created, e.g. 'eastus' or 'westeurope'.

• Cloud <String>

  • Optional. Default: AzureCloud

• DiagnosticLogPath <String>

  • Path to a directory containing the logs to be parsed and sent to Microsoft.

• ObsRootFolderPath <String>

  • Optional. Observability root folder path where the standalone pipeline is (temporarily) installed and activity logs related to sending diagnostic data are output.
    • Default: {DiagnosticLogPath}..\SendLogs_{yyyyMMddTHHmmssffff} (a new file created in the DiagnosticLogPath parent directory)

• StampId <Guid>

  • Optional. Unique id for disconnected operations deployment. This GUID is used for tracking collected logs on Microsoft support. Same can be retrieved using Get-ApplianceInstanceConfiguration when management endpoint is accessible for disconnected operations appliance VM. The default value applied will be based on the following setting:
    • Provided StampId GUID
    • $env:STAMP_GUID (when StampId GUID not provided)
    • The host machine's UUID (when StampId GUID not provided and $env:STAMP_GUID not set)

Example:

Send-DiagnosticData with device code login (used by default if no credential is provided, even if -RegistrationWithDeviceCode is missing):

Import-Module "C:\azurelocal\OperationsModule\ApplianceFallbackLogging.psm1" -Force

Send-DiagnosticData -ResourceGroupName "xxxxx" `
    -SubscriptionId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -TenantId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -RegistrationWithDeviceCode `
    -RegistrationRegion "eastus" `
    -DiagnosticLogPath "C:\path\to\LogsToExport" `
    -StampId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

Send-DiagnosticData using Service Principal Credential, sending to the eastus region of the Azure cloud:

Import-Module "C:\azurelocal\OperationsModule\ApplianceFallbackLogging.psm1" -Force

$spId = "{...}"
$spSecret = "{...}"
$ss = ConvertTo-SecureString -String $spSecret -AsPlainText -Force
$spCred = New-Object System.Management.Automation.PSCredential($spId, $ss)

Send-DiagnosticData -ResourceGroupName "xxxxx" `
    -SubscriptionId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -TenantId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx" `
    -RegistrationWithCredential $spCred `
    -RegistrationRegion "eastus" `
    -DiagnosticLogPath "C:\path\to\LogsToExport" `
    -StampId "xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx"

The cmdlet returns the Stamp ID used for log uploads to Microsoft Support, any errors encountered during the upload, and the ___location of the send activity logs. For example:

Example output:

AEOStampID 'e5182bb9-7c18-4dec-9def-0004d34f3e94' used for log tracking in Kusto.

Logs and artifacts from send action can be found under:
 G:\CopyLogs_20240501T1826317607\SendLogs_20240501T1827168699

Log parsing engine results can be found under:
 G:\CopyLogs_20240501T1826317607\SendLogs_20240501T1827168699\ObsScheduledTaskTranscripts

If the Stamp ID isn't set and isn't passed to the Send-DiagnosticData cmdlet manually, it defaults to using the host UUID. The Stamp ID is synonymous with the AEOStampId used to track logs in Azure Data Explorer.

Send-DiagnosticData –SaveToPath (applicable for Azure Local Host node logs)

The Send-DiagnosticData cmdlet gathers logs and, when needed, securely uploads them to Microsoft for analysis. It supports both Azure Stack HCI and Azure Local environments, providing detailed telemetry and diagnostic data to help troubleshoot issues. This cmdlet is available when the telemetry and diagnostics extension is installed, ensuring all necessary components for log collection and upload are present.

What Send-DiagnosticData does:

• Collects logs from the local system, including:
  • Role-specific logs
  • Supplementary logs
  • Software Defined Data Center (SDDC) log (Optional)
• Supports filtering by:
  • Role
  • Date range
  • Log type
• Bypasses observability agents to collect logs only on the node where the command is run.
• Let’s you save logs locally by using the -SaveToPath parameter.
• Supports secure credential access when saving to a network share.

Azure Local disconnected when the appliance VM is connected to Azure

When the appliance VM is connected to Azure, upload host node logs the same way as in the Azure Local disconnected scenario. For control plane logs, send them directly by using Invoke-ApplianceLogCollection. You don't need to save them locally first.

The following diagram shows the key components for log collection in Azure Local disconnected when the appliance VM is connected to Azure:

Here's what you need to do log collection in a connected disconnected operations scenario.

1. Use Deploy disconnected operations for Azure Local (Preview) to set up the following Azure resources:

   • A resource group in Azure for the appliance.
   • A service principal (SPN) with contributor rights on the resource group.
   • Copy the AppId and Password from the output. Use them as ServicePrincipalId and ServicePrincipalSecret during observability setup.

2. Install the operations module if it's not installed. Use the Import-Module cmdlet and change the path to match your folder structure.

   Import-Module "<disconnected operations module folder path>\Azure.Local.DisconnectedOperations.psd1" -Force


   Example output:

   PS C:\Users\administrator.s46r2004\Documents> Import-Module "Q:\AzureLocalVHD\OperationsModule\Azure.Local.DisconnectedOperations.psd1" -Force
   VERBOSE: [2025-03-26 19:49:12Z][Test-RunningRequirements] PSVersionTable:

   Name                           Value
   ----                           -----
   PSVersion                      5.1.26100.2161
   PSEdition                      Desktop
   PSCompatibleVersions           {1.0, 2.0, 3.0, 4.0...}
   BuildVersion                   10.0.26100.2161
   CLRVersion                     4.0.30319.42000
   WSManStackVersion              3.0
   PSRemotingProtocolVersion      2.3
   SerializationVersion           1.1.0.1

   VERBOSE: See Readme.md for directions on how to use this module.


3. Use Deploy disconnected operations for Azure Local (Preview) for your management endpoint.

   • Identify your management endpoint IP address.
   • Identify the management client certificate used to authenticate with the Azure Local disconnected operations management endpoint.
   • Set up the management endpoint client context. Run this script:

   $certPasswordPlainText = "***"
   $certPassword = ConvertTo-SecureString $certPasswordPlainText -AsPlainText -Force
   $context = Set-DisconnectedOperationsClientContext -ManagementEndpointClientCertificatePath "<Management Endpoint Client Cert Path>" -ManagementEndpointClientCertificatePassword $certPassword -ManagementEndpointIpAddress "<Management Endpoint IP address>"


4. Retrieve BitLocker keys:

   $recoveryKeys = Get-ApplianceBitlockerRecoveryKeys $context # context can be omitted if context is set.
   $recoveryKeys


   Example output:

   PS C:\Users\administrator.s46r2004\Documents> $recoverykeySet = Get-ApplianceBitlockerRecoveryKeys
   >> $recoverykeySet | ConvertTo-JSON > c:\recoveryKey.json
   VERBOSE: [2025-03-26 21:57:01Z][Get-ApplianceBitlockerRecoveryKeys] [START] Get bitlocker recovery keys.
   VERBOSE: [2025-03-26 21:57:01Z][Invoke-ScriptsWithRetry] Executing 'Script Block' with timeout 300 seconds ...
   VERBOSE: [2025-03-26 21:57:01Z][Invoke-ScriptsWithRetry] [CHECK][Attempt 0] for task 'Script Block' ...
   VERBOSE: [2025-03-26 21:57:01Z][Invoke-ScriptsWithRetry] Task 'Script Block' succeeded.
   VERBOSE: [2025-03-26 21:57:01Z][Get-ApplianceBitlockerRecoveryKeys] [END] Get bitlocker recovery keys.
   PS C:\Users\administrator.s46r2004\Documents> Get-content c:\recoveryKey.json


Security considerations

• In air-gapped environments, this method is the only supported way to extract and give diagnostic logs to Microsoft.
• Logs aren't automatically sent unless you explicitly set them to be sent.
• Logs can be saved locally and reviewed before sharing.
• Logs can contain sensitive operational metadata, but they don't include personal data by default.
• Microsoft doesn't keep access to logs unless they're explicitly shared by the customer.

If your organization doesn't let the affected node connect directly to the internet, follow these steps:

1. Use the -SaveToPath option to store logs locally.
2. Move the logs to a separate VM or system that can connect to the internet.
3. Use that system to upload the logs to Microsoft through secure support channels.

This approach lets you share diagnostic data for support purposes without affecting the integrity of your air-gapped environment.

Use fallback log collection

Use fallback log collection to collect and send logs when the disconnected operations with Azure Local VM are down, the management endpoint isn't accessible, and you can't invoke standard log collection.

There are three methods used in this scenario:

• Copy-DiagnosticData: Copy logs from the disconnected operations with Azure Local VM to a local folder.
• Send-DiagnosticData: Send logs to Microsoft for analysis.
• Get-observabilityStampId: Get the stamp ID.

For more information, see Use appliance fallback log collection.

Common issues

• Copy-DiagnosticData: this cmdlet must be run on the Hyper-V host that is hosting your Azure Local disconnected VM.

• Send-DiagnosticData: this cmdlet must be run on a windows machine that has direct internet access to Azure, isn't arc-enabled, and doesn't use the appliance as its arc control plane.

• Invoke-ApplianceLogCollectionAndSaveToShareFolder: you need to specify the account in the format: Domain\Username. If you omit the ___domain or use an incorrect username, the copy operation to the share fails with an access-denied error.

When to use on-demand log collection

Use on-demand direct log collection when an on-premises device running Azure Local temporarily connects to Azure.

• Improper Execution of Send-DiagnosticData.

  • Log collection fails when customers attempt to run Send-DiagnosticData or Copy-DiagnosticData from:
    • Nodes that aren't part of the Azure Local host infrastructure.
    • External machines (for example, personal laptops) that don't host the required appliance VMs on the same Hyper-V host.

• Misuse of the Observability Tool.

  • The Standalone Observability Tool must be:
    • Run on a Windows Server.
    • Configured with more manual steps if executed in unsupported environments.

Indirect or fallback log collection (disconnected mode)

Use indirect log collection methods when direct upload isn't possible:

• Run the following commands on the seed node:

  • Invoke-ApplianceLogCollectionAndSaveToShareFolder
  • Copy-DiagnosticData

• Ensure that:

  • The share folder is accessible.
  • Troubleshooting instructions are provided for common failures (for example, permission issues, missing dependencies).

Uploading logs to Microsoft Support

To upload collected logs to Microsoft:

• Use the Send-DiagnosticData command from the Azure Local Disconnected Operations PowerShell module.
• Important: This command must not be run on Azure Local host nodes, as those are managed by the Azure Local disconnected operations control plane.
• Instead, run it from a Windows machine with Azure connectivity—ideally the customer’s laptop or desktop.

Related content

• Learn how and when to use Use appliance fallback log collection.

This feature is available only in Azure Local 2506.
