Analyze the health and status of your Kubernetes cluster with Azure Monitor

Azure Monitor provides a set of views in the Azure portal that combine performance and log data collected from your Kubernetes cluster to help you analyze its health and performance. This article describes the different views available and how to interact with and interpret the data they present.

Multi-cluster view

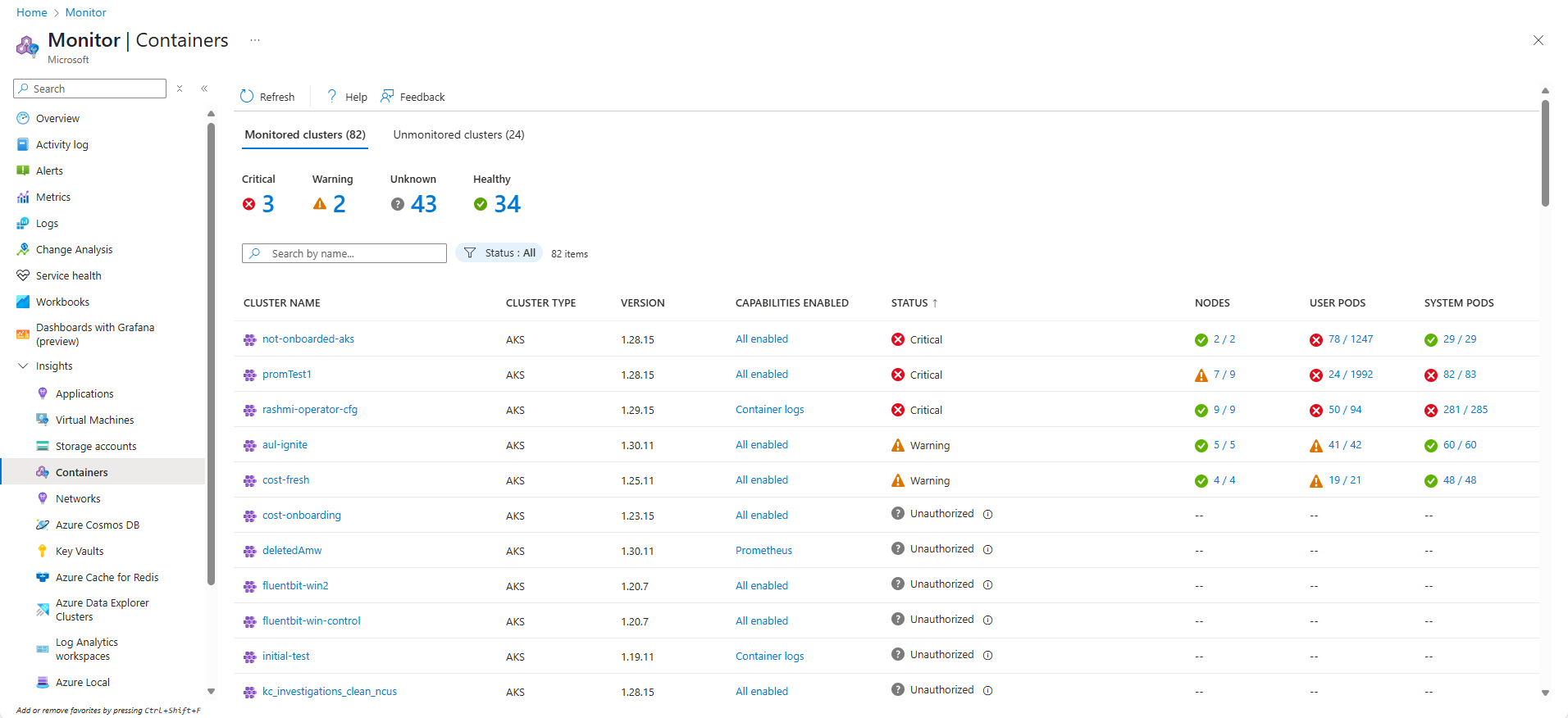

To open the multi-cluster view, select Containers from the Insights section of the Monitor menu in the Azure portal. This view shows the health status of all monitored Kubernetes clusters deployed across resource groups in your subscriptions. This view allows you to quickly identify clusters that are in a critical or unhealthy state and also helps you to enable and configure monitoring for all clusters in your environment. See Enable monitoring for AKS clusters for details.

Select the Nodes column to open the Nodes tab in the single-cluster view for that cluster. Open the Controllers tab for the cluster with an appropriate filter by selecting the User pods or System pods column.

The following table describes the different health statuses displayed in this view. Health state calculates the overall cluster status as the worst of the three states. If any of the three states is Unknown, the overall cluster state shows Unknown.

The following table provides a breakdown of the calculation that controls the health states for a monitored cluster on the multi-cluster view.

Single cluster view

To open the single cluster view, either select a cluster from the multi-cluster view or select Monitor from a cluster's menu. This view provides multiple tabs that allow you to drill down on the health and performance of the selected cluster.

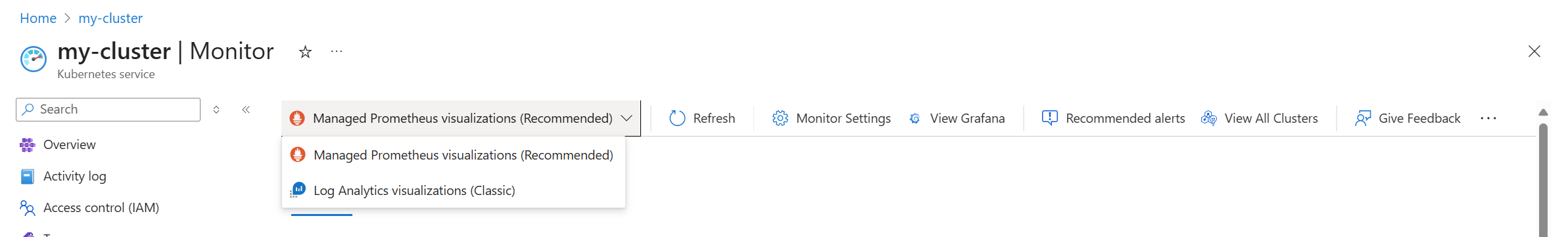

Options

Filtering data

Each of the tabs in the single-cluster view provides options to filter the data presented. Each tab has a filter for Time range of the collected. The Nodes, Controllers, and Containers tabs allow you to add a filter data or by node or namespace by selecting Add Filter.

Overview tab

The Overview tab provides a set of tiles showing the health and performance of that cluster. Several of these tiles may be disabled if you haven't enabled certain features of monitoring. In this case, the tile will offer an option to launch the onboarding process for the cluster. See Enable Kubernetes monitoring using the Azure portal for details.

Nodes, Controllers, and Containers tabs

The Nodes, Controllers, and Containers tabs display a list of these resources for the cluster. The tabs will be disabled if you aren't collecting performance data for the cluster. In this case, the tab will offer an option to launch the onboarding process for the cluster. See Enable Kubernetes monitoring using the Azure portal for details.

Status

The icons in the Status field indicate the online status of item as described in the following table.

Icon	Status
	Waiting or Paused
	Last reported running but hasn't responded in more than 30 minutes
	Successfully stopped or failed to stop
	Failed state

Select metric

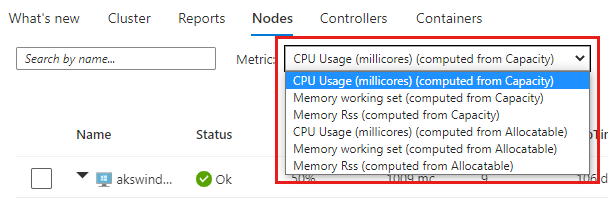

The Nodes, Controllers, and Containers tabs include an option to select the metric that's used for the values in the view.

To review memory utilization, in the Metric dropdown list, select Memory RSS or Memory working set. Memory RSS is supported only for Kubernetes version 1.8 and later. Otherwise, you view values for Min % as NaN %, which is a numeric data type value that represents an undefined or unrepresentable value.

Memory working set shows both the resident memory and virtual memory (cache) included and is a total of what the application is using. Memory RSS shows only main memory, which is nothing but the resident memory. This metric shows the actual capacity of available memory.

• Resident memory, or main memory, is the actual amount of machine memory available to the nodes of the cluster.
• Virtual memory is reserved hard disk space (cache) used by the operating system to swap data from memory to disk when under memory pressure, and then fetch it back to memory when needed.

Select metric calculation

The percentile selector defines how the metric is aggregated over the selected time range. The title of the aggregated column will change to match the selected option.

Trend column

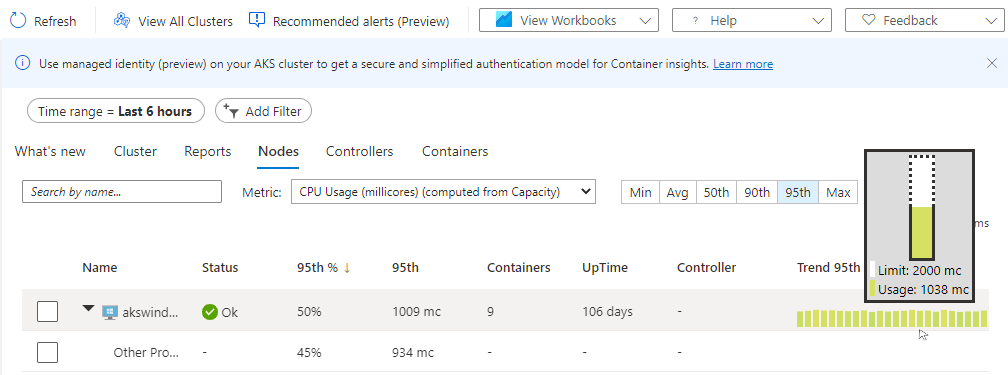

When you hover over the bar graph under the Trend column, each bar shows either CPU or memory usage, depending on which metric is selected, within a sample period of 15 minutes. After you select the trend chart through a keyboard, use the Alt+Page up key or Alt+Page down key to cycle through each bar individually. You get the same details as if you hovered over the bar.

In the next example, for the first node in the list, aks-nodepool1-, the value for Containers is 25. This value is a rollup of the total number of containers deployed.

Property pane

Select any item to open a property pane that shows the properties of the item selected. When a Linux node is selected, the Local Disk Capacity section also shows the available disk space and the percentage used for each disk presented to the node. From this pane, you also can view Kubernetes container logs (stdout/stderror), events, and pod metrics by selecting the Live Events tab at the top of the pane. For more information about this feature, see How to view Kubernetes logs, events, and pod metrics in real time.

View log data

To view log data for the selected resource based on predefined log searches, select View Events in Log Analytics from the property pane. For more information on this data and log queries, see How to query container logs.

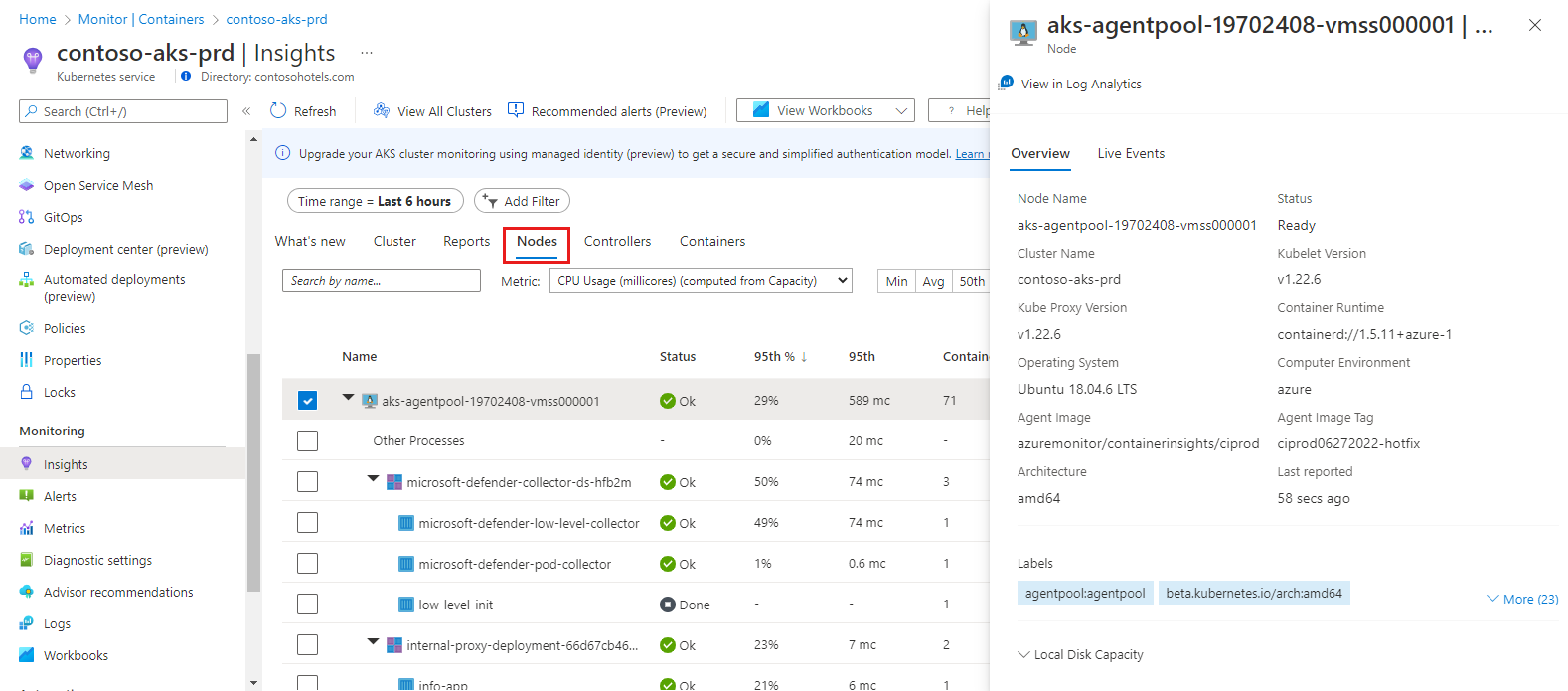

Nodes tab

The following table describes the columns in the Nodes tab.

The row hierarchy in the Nodes tab follows the Kubernetes object model. Expand a node to view its pods. If more than one container is grouped to a pod, they're displayed as the last row in the hierarchy. You also can view how many non-pod-related workloads are running on the host if the host has processor or memory pressure.

Windows Server containers are shown after all the Linux-based nodes in the list. When you expand a Windows Server node, you can view one or more pods and containers that run on the node. After a node is selected, the properties pane shows version information.

Azure Container Instances virtual nodes that run the Linux OS are shown after the last AKS cluster node in the list. When you expand a Container Instances virtual node, you can view one or more Container Instances pods and containers that run on the node. Metrics aren't collected and reported for nodes, only for pods.

From an expanded node, you can drill down from the pod or container that runs on the node to the controller to view performance data filtered for that controller. Select the value under the Controller column for the specific node.

The Other processes entry view is intended to help you clearly understand the root cause of the high resource usage on your node. This information helps you to distinguish usage between containerized processes versus noncontainerized processes. These are noncontainerized processes that run on your node and include the following:

• Self-managed or managed Kubernetes noncontainerized processes
• Container run-time processes
• Kubelet
• System processes running on your node
• Other non-Kubernetes workloads running on node hardware or a VM

The value of other processes is Total usage from CAdvisor - Usage from containerized process.

Controllers tab

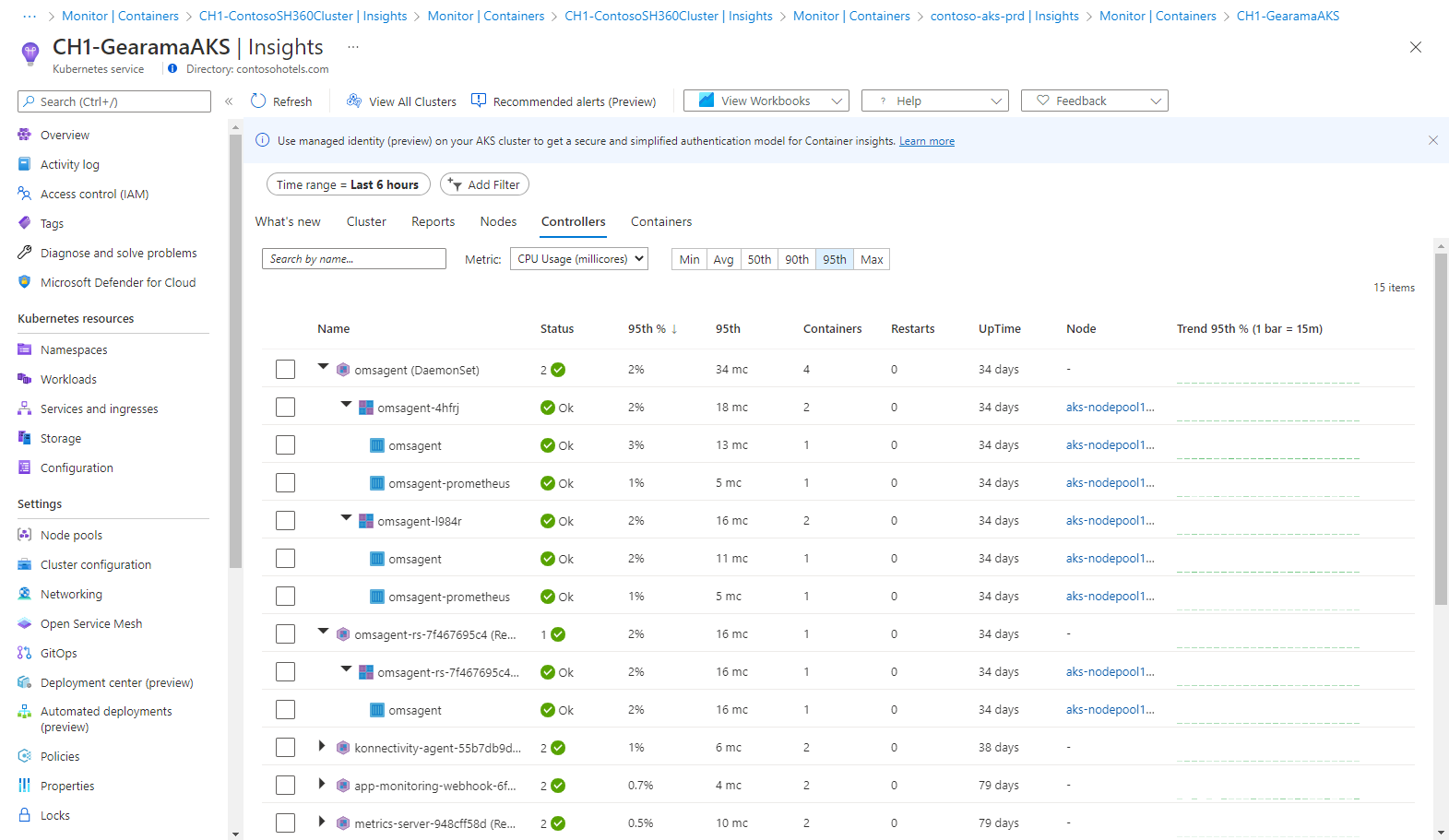

The Controllers tab lets you view the performance health of your controllers, virtual node controllers, and virtual node pods not connected to a controller.

The row hierarchy starts with a controller. When you expand a controller, you view one or more pods. Expand a pod, and the last row displays the container grouped to the pod. From an expanded controller, you can drill down to the node it's running on to view performance data filtered for that node. Container Instances pods not connected to a controller are listed last in the list.

Select the value under the Node column for the specific controller.

The following table describes the columns in the Controllers tab.

Containers tab

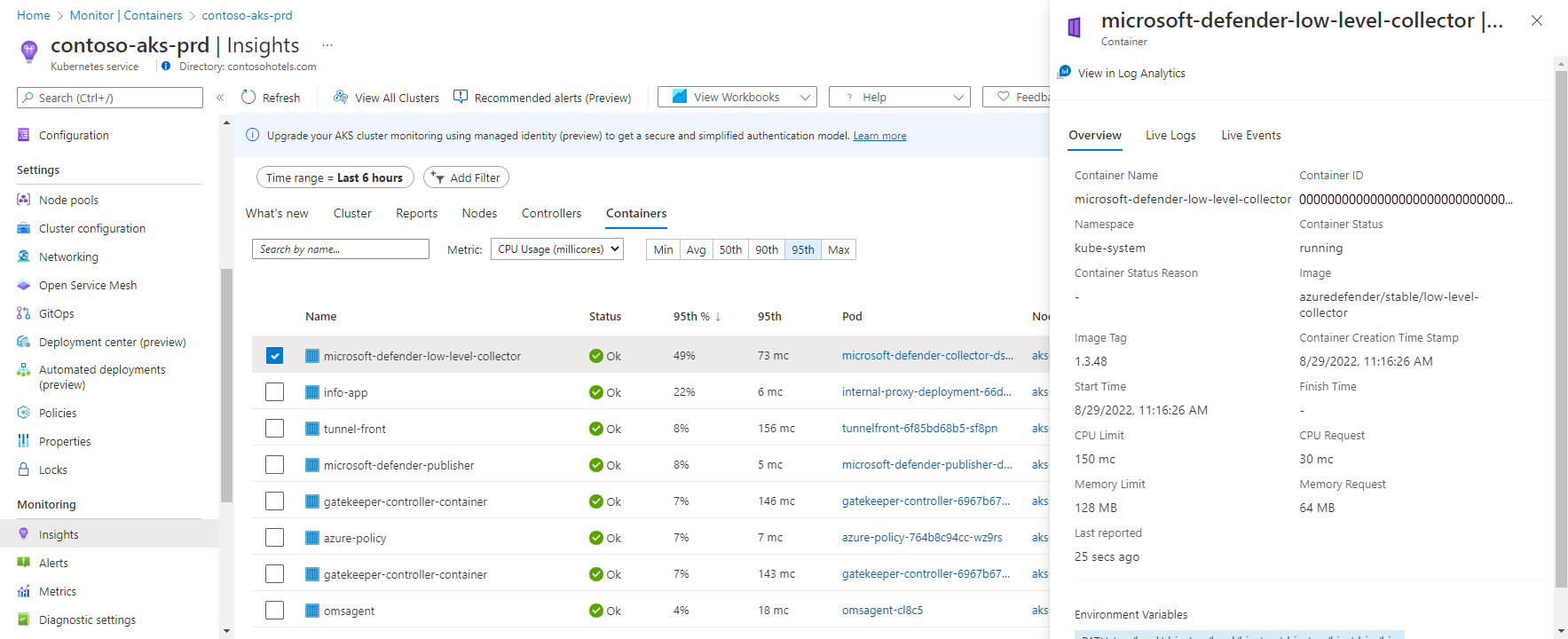

The Containers tab lets you view the performance health of your containers.

From a container, you can drill down to a pod or node to view performance data filtered for that object. Select the value under the Pod or Node column for the specific container.

The following table describes the columns in the Containers tab.

Next steps

• See Create performance alerts with Container insights to learn how to create alerts for high CPU and memory utilization to support your DevOps or operational processes and procedures.
• See Log query examples to see predefined queries and examples to evaluate or customize to alert, visualize, or analyze your clusters.
