Create and use a replica cluster in another or the same Azure region in Azure Cosmos DB for MongoDB vCore

2025-09-11
Applies to: ✅ MongoDB vCore

In this guide, you'll create a replica cluster in either a different Azure region or the same region for an Azure Cosmos DB for MongoDB vCore cluster. A cross-region replica cluster can be used for disaster recovery (DR) and read scalability, while a replica cluster in the same region is primarily intended for read scalability.

The replica cluster stores a copy of all your MongoDB resources—databases, collections, and documents—in another or the same Azure region. The replica cluster provides a unique endpoint for various tools and SDKs to connect to. It can be promoted to accept writes if the primary region experiences an outage.

Prerequisites

An Azure subscription
- If you don't have an Azure subscription, create a free account before you begin.

MongoDB shell

Create a new cluster and its replica in another or the same region

Create a MongoDB cluster with a cluster read replica by using Azure Cosmos DB for MongoDB vCore.

Tip

For this guide, we recommend using the resource group name msdocs-cosmos-quickstart-rg.

Sign in to the Azure portal.
From the Azure portal menu or the Home page, select Create a resource.
On the New page, search for and select Azure Cosmos DB.
On the Which API best suits your workload? page, select the Create option within the Azure Cosmos DB for MongoDB section.

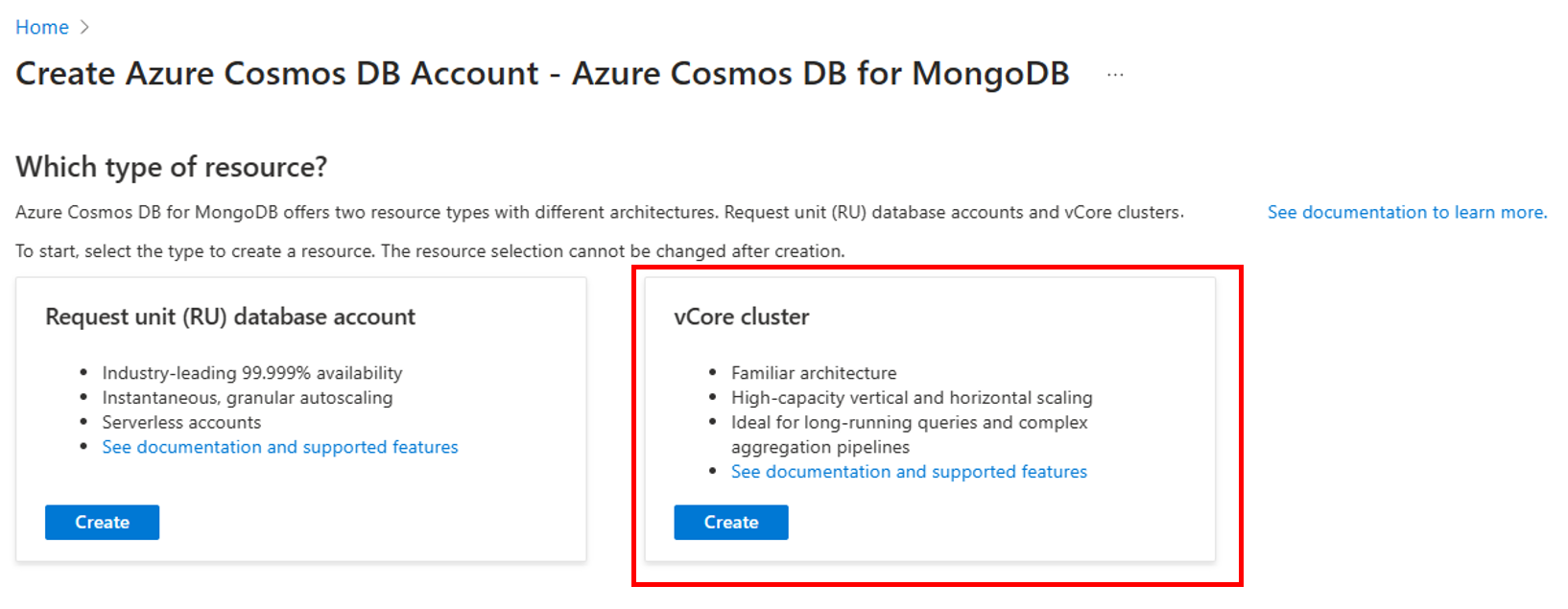

On the Which type of resource? page, select the Create option within the vCore cluster section. For more information, see overview of the vCore architecture in Azure Cosmos DB for MongoDB.
On the Create Azure Cosmos DB for MongoDB cluster page, select the Configure option within the Cluster tier section.

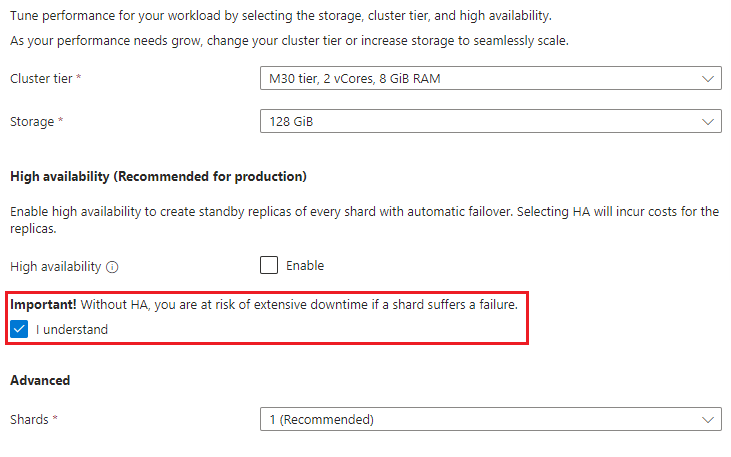

On the Scale page, leave the options set to their default values:

Setting Value

Shard count 1 shard

Cluster tier M30 Tier, 2 vCores, 8 GiB RAM

Storage 128 GiB
Unselect the High availability option. In the high availability (HA) acknowledgment section, select I understand. Finally, select Save to persist your changes to the cluster configuration.

In-region high availability provides an in-region solution where a copy of data from each shard in a cluster is streamed to its standby counterpart located in the same region but in a different availability zone (AZ). High availability uses synchronous replication with zero data loss and automatic failure detection and failover while preserving the connection string intact after failover. High availability might be enabled on the primary cluster for an additional layer of protection from failures.

Setting	Value
Shard count	1 shard
Cluster tier	M30 Tier, 2 vCores, 8 GiB RAM
Storage	128 GiB

Back on the cluster page, enter the following information:

Setting	Value	Description
Subscription	Subscription name	Select the Azure subscription that you wish to use for this Azure Cosmos DB for MongoDB cluster and its replica cluster.
Resource group	Resource group name	Select a resource group, or select Create new, then enter a unique name for the new resource group.
Cluster name	A globally unique name	Enter a name to identify your Azure Cosmos DB for MongoDB cluster. The name is used as part of a fully qualified ___domain name (FQDN) with a suffix of mongodbcluster.cosmos.azure.com, so the name must be globally unique. The name can only contain lowercase letters, numbers, and the hyphen (-) character. The name must also be between 3 and 40 characters in length.
Location	The region closest to your users	Select a geographic ___location to host your Azure Cosmos DB for MongoDB cluster with read and write capabilities, the primary cluster. Use the ___location that is closest to your users to give them the fastest access to the data.
MongoDB version	Version of MongoDB to run on your cluster	This value is set to a default of the most recent MongoDB version available.
Admin username	Provide a username to access the cluster	This user is created on the cluster as a user administrator.
Password	Use a unique password to pair with the username	Password must be at least 8 characters and at most 128 characters.

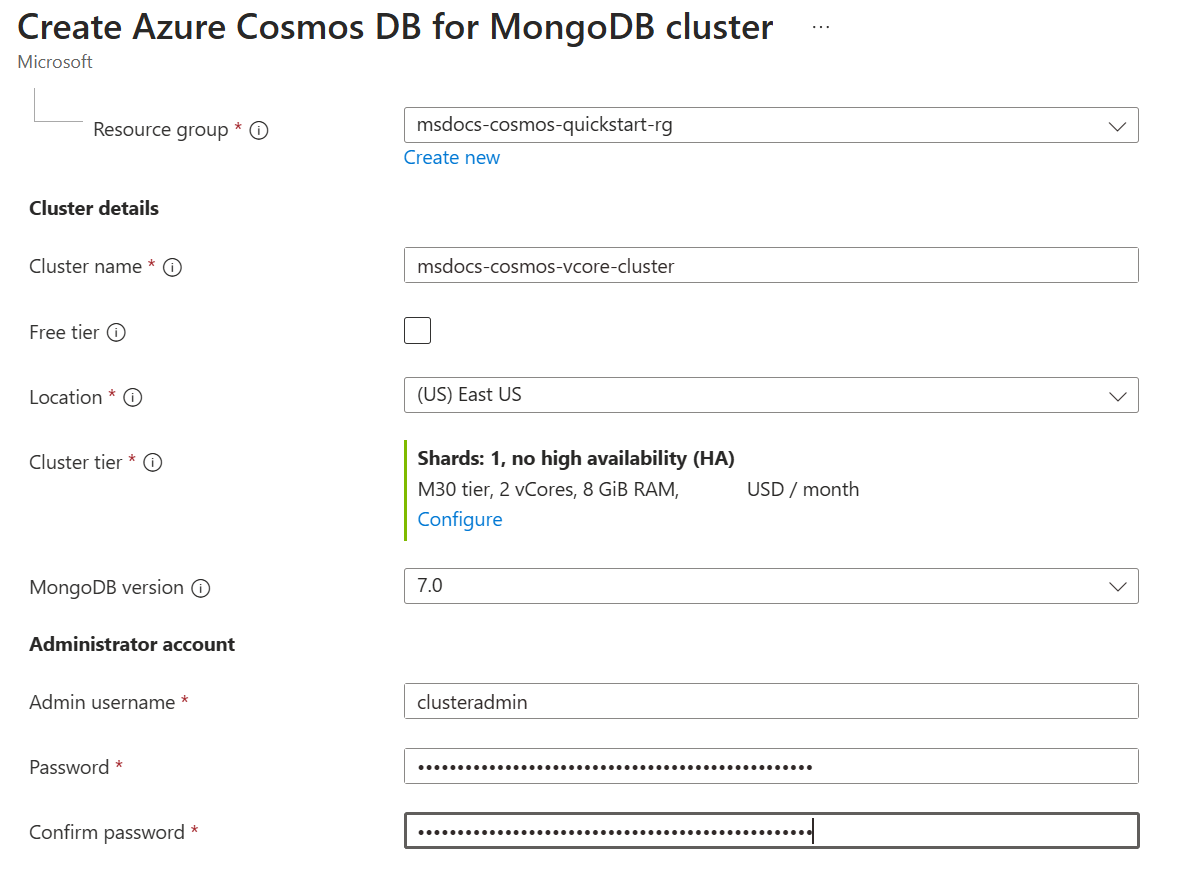

Screenshot of various configuration options for a cluster.

Select Next: Networking.
On the Networking tab, select Add current client IP address to create a firewall rule with the public IP address of your computer, as perceived by the Azure system.

Verify your IP address before saving this configuration. In some situations, the IP address observed by Azure portal differs from the IP address used when accessing the Internet and Azure services. Thus, you may need to change the start IP and end IP to make the rule function as expected. Use a search engine or other online tool to check your own IP address. For example, search for what is my IP.

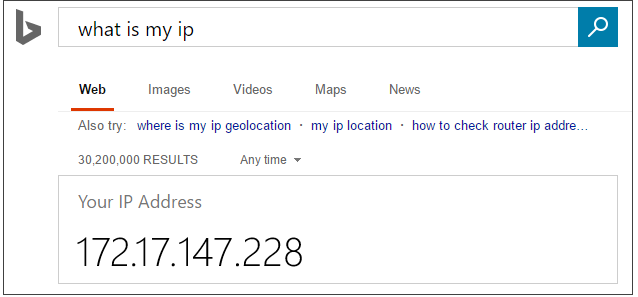

Screenshot of a web search result for the current host's public IP address.

You can also select Add 0.0.0.0 - 255.255.255.255 firewall rule to allow not just your IP, but the whole Internet to access the cluster. In this situation, clients still must log in with the correct username and password to use the cluster. Nevertheless, it's best to allow worldwide access for only short periods of time and for only non-production databases.

Select Next: Global distribution.

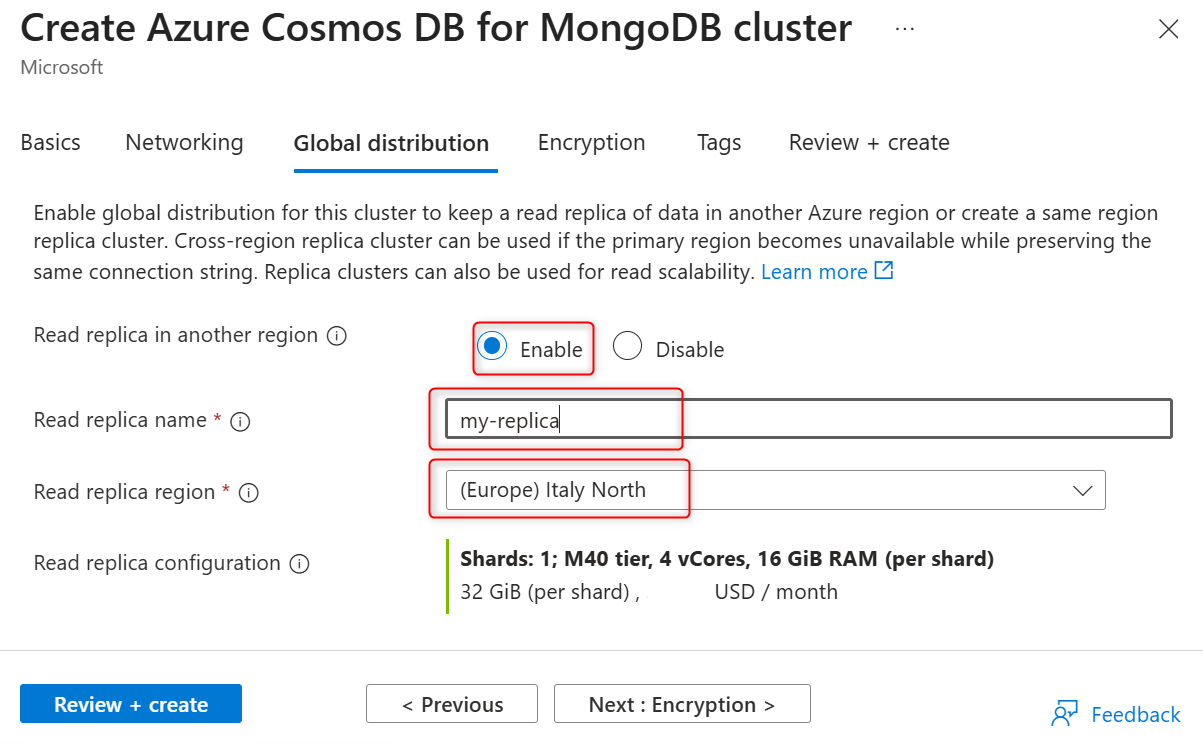

On the Global distribution tab, select Enable for Cluster replica to create a replica cluster as a part of this new primary cluster provisioning.
In the Read replica name field, enter a name for the replica cluster. It should be a globally unique cluster name.
Select a value from the Read replica region drop-down list.
Select Review + create.
Review the settings you provided, and then select Create. It takes a few minutes to create the cluster. Wait for the portal page to display Your deployment is complete before moving on.
Select Go to resource to go to the Azure Cosmos DB for MongoDB cluster page.

Connect to primary cluster and ingest data

Get the connection string you need to connect to the primary (read-write) cluster in the Azure portal.

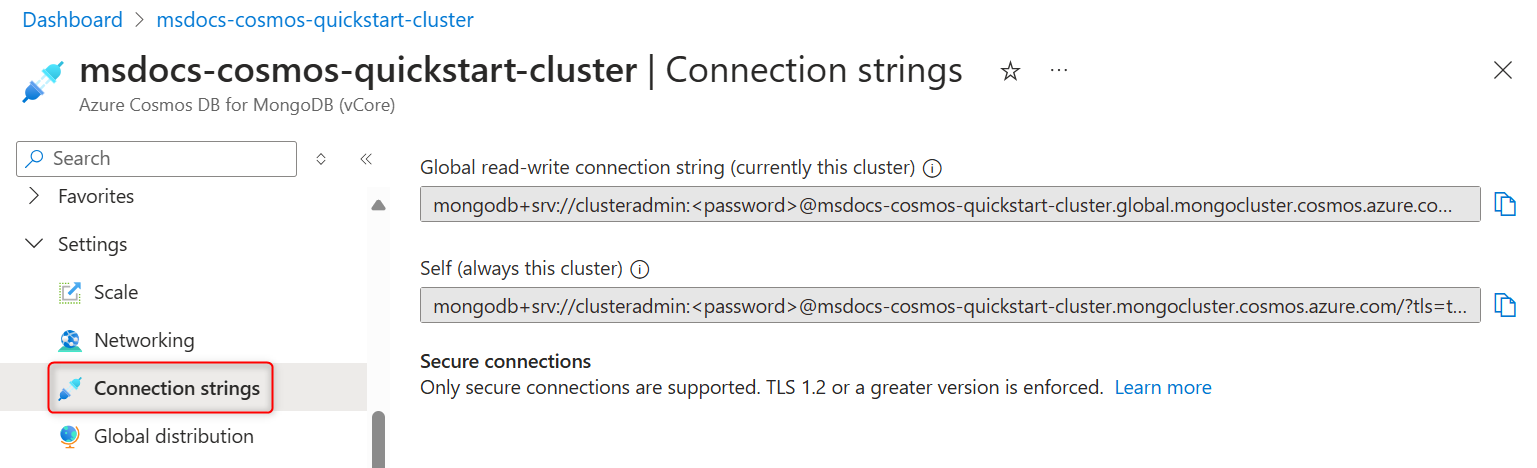

From the Azure Cosmos DB for MongoDB vCore primary cluster page, select the Connection strings navigation menu option under Settings.
Copy the value from the Self (always this cluster) field.
In command line, use the MongoDB shell to connect to the primary cluster using the connection string.

mongosh "mongodb+srv://<user>@<primary_cluster_name>.mongocluster.cosmos.azure.com/?tls=true&authMechanism=SCRAM-SHA-256&retrywrites=false&maxIdleTimeMS=120000"

Ingest data

Create a my_script.js script file to run it from the MongoDB shell.

let dogDocs = [
  {
    name: "pooch",
    breed: "poodle",
    weight: "6 lbs"
  },
  {
    name: "mutt",
    breed: "bulldog",
    weight: "10 lbs"
  }
];

let catDocs = [
  {
    name: "minni",
    breed: "persian",
    color: "white"
  },
  {
    name: "tinkle",
    breed: "bombay",
    color: "black"
  }
];

let dogIndex = { name : 1 };
let catIndex = { name : 1 };

let collInfoObjs = [
  { coll: "dogs", data: dogDocs, index: dogIndex },
  { coll: "cats", data: catDocs, index: catIndex }
];

for (obj of collInfoObjs) {
    db[obj.coll].insertMany(obj.data);
    db[obj.coll].createIndex(obj.index);
}

This script file creates two collections and inserts documents with data into those collections. Save my_script.js file in a folder accessible to the MongoDB shell session.

Run the script from the MongoDB shell connected to the primary MongoDB cluster.

load(my_script.js);

In the MongoDB shell connected to the primary MongoDB cluster, read data from the database.

db.dogs.find();
db.cats.find();

Enable access to replica cluster

Important

Replica clusters are always created with networking access disabled. You should add firewall rules or create private endpoints on the replica cluster after it's created to enable read operations.

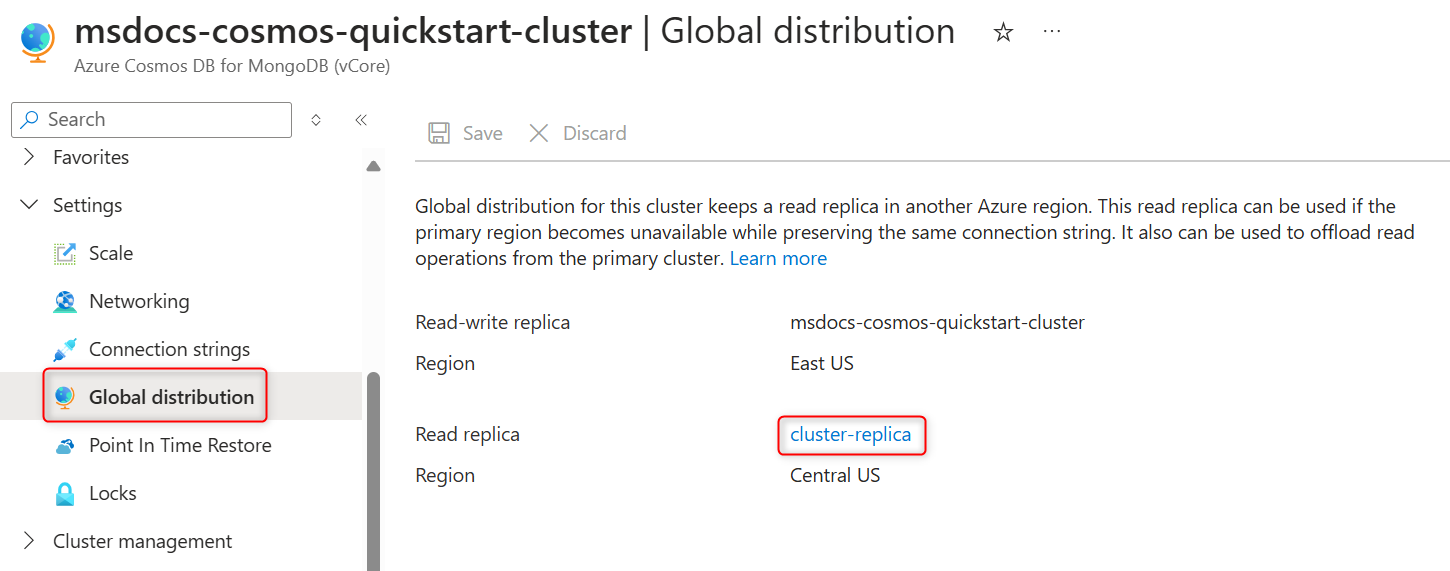

From the Azure Cosmos DB for MongoDB vCore primary cluster page, select the Global distribution page under Settings.
Select replica cluster name in the Read replica field to open the replica cluster properties in the Azure portal.

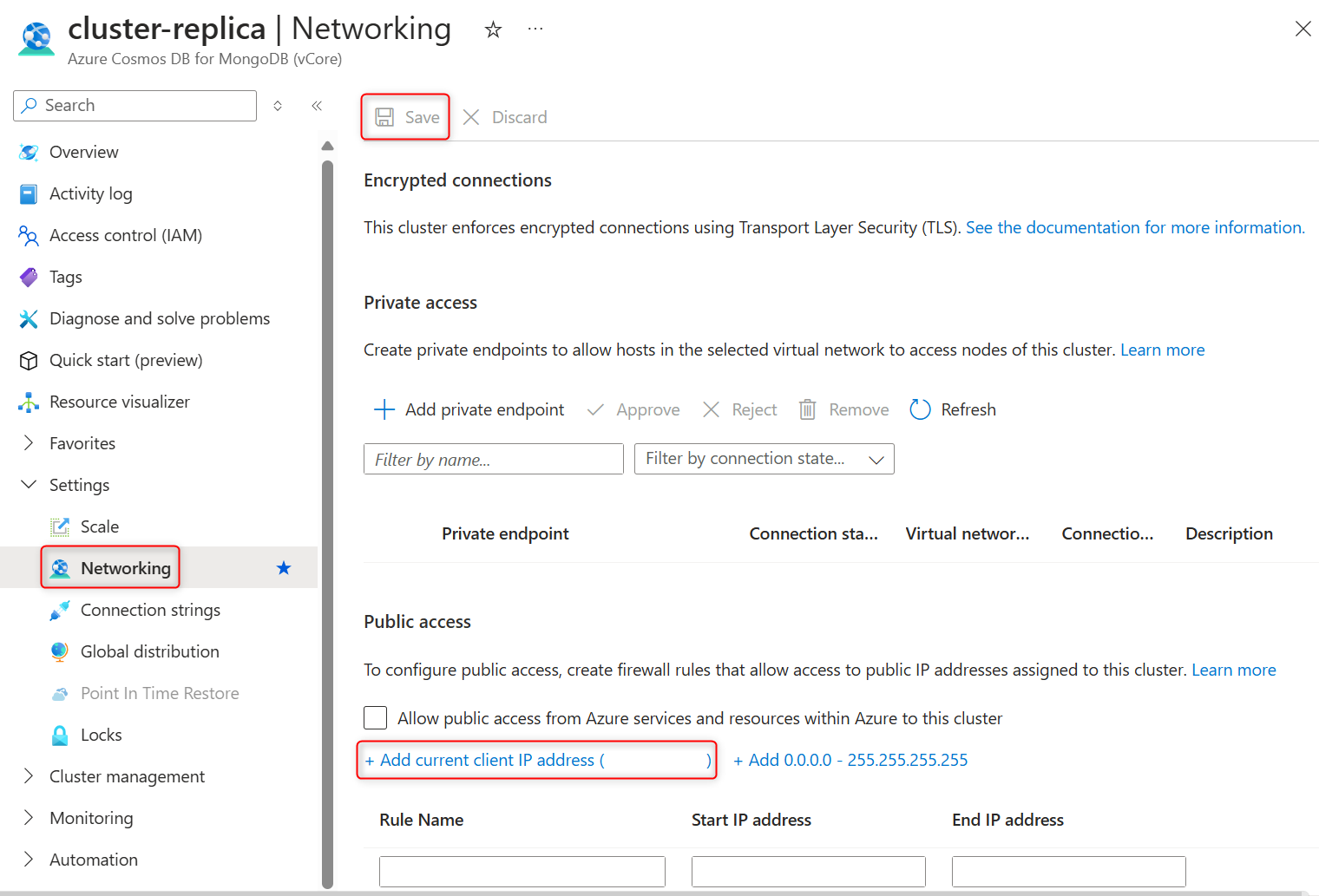

On the MongoDB vCore replica cluster page, under Settings, select Networking.
On the Networking page, select Add current client IP address to create a firewall rule with the public IP address of your computer, as perceived by the Azure system.

Verify your IP address before saving this configuration. In some situations, the IP address observed by Azure portal differs from the IP address used when accessing the Internet and Azure services. You can also select Add 0.0.0.0 - 255.255.255.255 firewall rule to allow not just your IP, but the whole Internet to access the cluster. In this situation, clients still must log in with the correct username and password to use the cluster.
Select Save on the toolbar to save the settings. It might take a few minutes for the updated networking settings to become effective.

Connect to read replica cluster in another region or the same region and read data

Get the connection string for the replica cluster.

On the replica cluster sidebar, under Cluster management, select Connection strings.
Copy the value from the Connection string field.

Important

The connection string of the replica cluster contains unique replica cluster name that you selected during replica creation. The username and password values for the replica cluster are always the same as the ones on its primary cluster.

In command line, use the MongDB shell to connect to the replica cluster using its connection string.

mongosh "mongodb+srv://<user>@<cluster_replica_name>.mongocluster.cosmos.azure.com/?tls=true&authMechanism=SCRAM-SHA-256&retrywrites=false&maxIdleTimeMS=120000"

Read data from replica cluster

In the MongoDB shell connected to the replica cluster, read data from the database.

db.dogs.find();
db.cats.find();

Promote replica cluster

To promote a replica cluster to a read-write cluster, follow these steps:

Select the replica cluster in the portal.

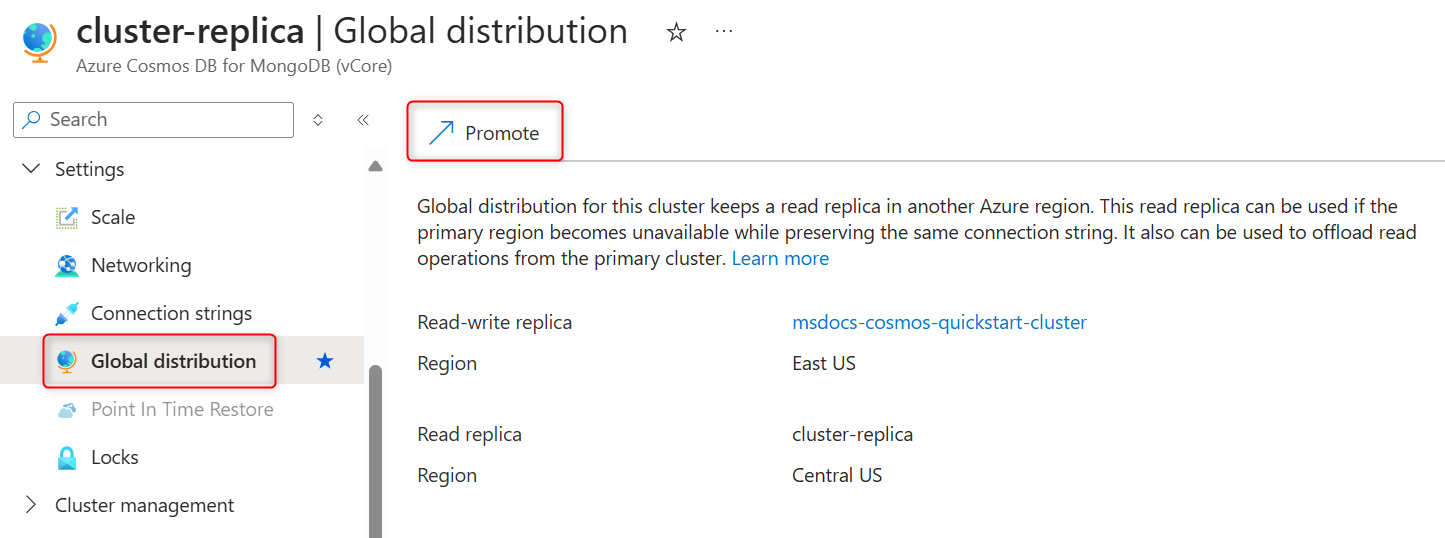

On the cluster sidebar, under Cluster management, select Global distribution.
On the Global distribution page, select Promote on the toolbar to initiate replica cluster promotion to read-write cluster.

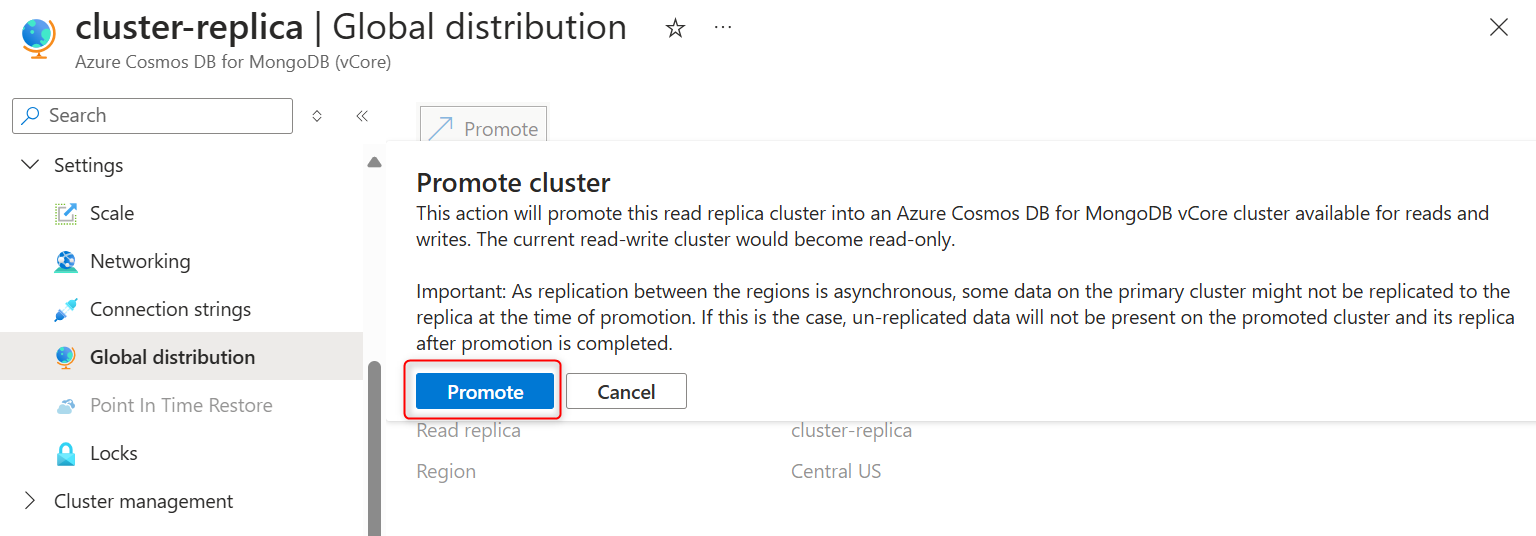

In the Promote cluster pop-up window, confirm that you understand how replica promotion works, and select Promote. Replica promotion might take a few minutes to complete.

Write to promoted cluster replica

Once replica promotion is completed, the promoted replica becomes available for writes and the former primary cluster is set to read-only.

To connect to the promoted replica cluster using its connection string, use the MongDB shell in command line.

mongosh "mongodb+srv://<user>@<promoted_replica_cluster_name>.mongocluster.cosmos.azure.com/?tls=true&authMechanism=SCRAM-SHA-256&retrywrites=false&maxIdleTimeMS=120000"

In the MongoDB shell session, perform a write operation.

db.createCollection('foxes')

Use the MongDB shell in command line to connect to the new replica cluster (former primary cluster) using its connection string. You can use self connection string or the global read-write connection string.

mongosh "mongodb+srv://<user>@<new_replica_cluster_name>.mongocluster.cosmos.azure.com/?tls=true&authMechanism=SCRAM-SHA-256&retrywrites=false&maxIdleTimeMS=120000"

In the MongoDB shell, confirm that writes are now disabled on the new replica (former primary cluster).

db.createCollection('bears')
