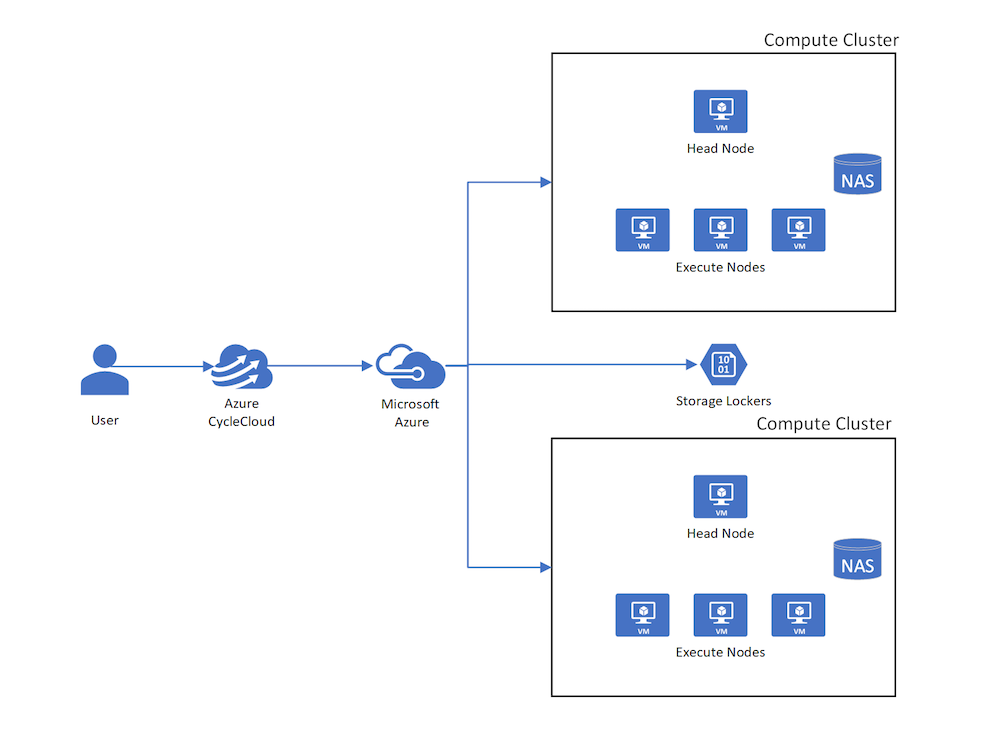

In CycleCloud, the term cluster describes a group of connected computers (nodes) working together as a single system. Clusters can be nested. For example, a compute cluster consisting of a Grid Engine scheduler headnode and compute nodes can mount a BeeGFS cluster consisting of several metadata and storage servers. Both compute and storage clusters coalesce under a single parent HPC cluster or system.
Nodes and node arrays
Clusters fundamentally comprise nodes, each of which performs a specific role in the HPC system. The terms node and VM are occasionally used interchangeably but are semantically separate in CycleCloud. Nodes that make up a cluster are virtual machines on Azure that complete the preparation and configuration process. In other words, you create VMs from the Azure infrastructure service layers. After you install the software and complete the configuration steps, the VMs are nodes of an HPC cluster.
CycleCloud has two types of nodes: standalone nodes and node arrays. A node array is a collection of identically configured nodes. The node vs node array distinction follows the DevOps Pets vs Cattle analogy. Standalone nodes are constructed from single VMs on Azure. Node arrays map to virtual machine scale sets.
However, there are crucial differences between node arrays and virtual machine scale sets. A single node array can comprise multiple virtual machine scale sets. This configuration enables a single node array to be built from VMs of different sizes or even different VM families. The only constraint is that all nodes in a node array perform the same role in the cluster. For example, all nodes provide resources to a single queue of a scheduler.
Cluster templates
Define the topology, or how nodes are organized in a CycleCloud cluster, in text templates. The templates lay out the relationships among nodes of a cluster. If there are nested clusters, the templates define the parent-child relationship of clusters. The templates also define the role of each node.
Define cluster templates in the INI format. Use sections delineated with square brackets [and ] to define clusters, nodes, and node arrays. The basic elements of INI files are key-value pair assertions that provide the configuration details of each section. These configuration details provide contextual information to create each node of a cluster, such as the virtual machine image to boot the VM and the subnet for the VM. For more information, see CycleCloud cluster templates.
Node preparation and configuration

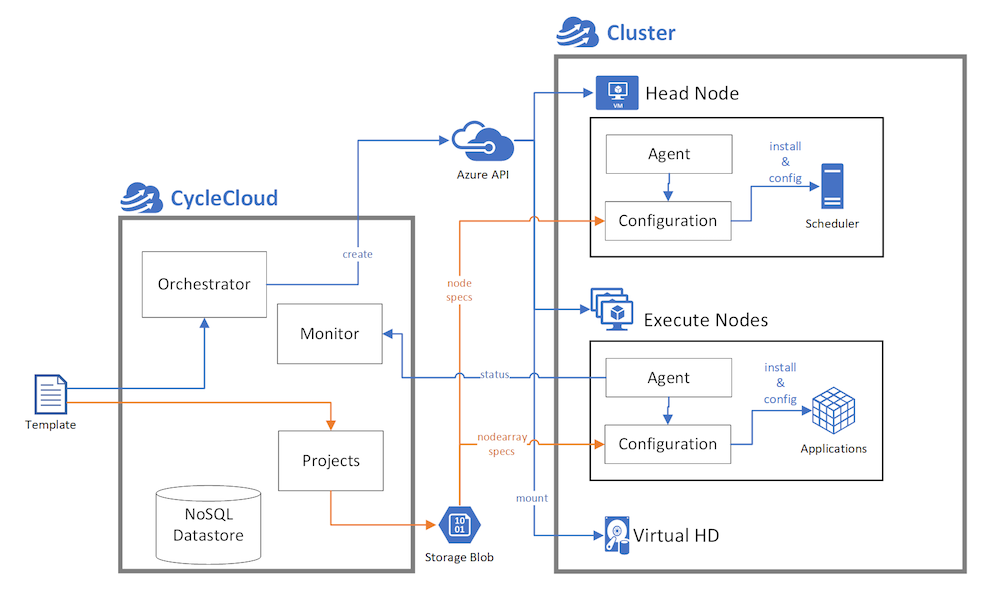

CycleCloud provisions VMs from base VM images defined in the cluster template. Through a series of steps managed by the CycleCloud agent (Jetpack) during the boot process, it initializes and configures the OS on the VM to convert it into a working HPC node. These steps range from scripts to install and configure the scheduling software, to last-mile configuration for mounting a file system.
In the configuration section of each node, you define cluster-init specs. Booting VMs use these specifications to prepare for a specific role in the cluster. CycleCloud uses Chef as the infrastructure automation platform for preparing and configuring each node. Each cluster-init spec maps to one or more Chef Roles and/or Cookbook Recipes that need to be executed on the booting VM.
CycleCloud uses Chef in a stand-alone mode that doesn't rely on a centralized Chef server. Instead, the entire set of Chef Cookbooks needed to prepare each VM are downloaded from an Azure Storage Account belonging to the user during the VM bootup phase. This set of Cookbooks are cached from the CycleCloud application server into the Storage Account during the cluster creation phase.
After you download these cookbooks, Chef processes the list of recipes defined in the node's cluster-init specs. It triggers a preparation and configuration phase that converts the VM into a working HPC node.
You author specs as logical collections called projects. For example, a project for a batch scheduler such as Slurm comprises a minimum of two specs: one for the scheduler head nodes and the other for the compute nodes. Read more about the CycleCloud projects.
Node orchestration
Depending on the scheduler and services used in a cluster, CycleCloud sometimes needs to orchestrate the preparation phase of nodes in a cluster by coordinating different nodes. For example, some schedulers require that each compute node registers itself with the scheduler daemon. This requirement means that the compute nodes must be aware of the address of the head node. The compute nodes must also recognize that the head node is fully prepared and wait if it's not.
CycleCloud uses this element of Service Discovery for file system server-client relationships.
