Build and publish a Python app

Azure DevOps Services | Azure DevOps Server 2022 - Azure DevOps Server 2019

In this quickstart, you create a pipeline that builds and tests a Python app. You see how to use Azure Pipelines to build, test, and deploy Python apps and scripts as part of your continuous integration and continuous delivery (CI/CD) system.

Prerequisites

Python is preinstalled on Microsoft-hosted agents for Linux, macOS, and Windows. You don't have to set up anything more to build Python projects. To see which Python versions are preinstalled, see Software.

Product Requirements
Azure DevOps - An Azure DevOps project.
- An ability to run pipelines on Microsoft-hosted agents. You can either purchase a parallel job or you can request a free tier.
- Basic knowledge of YAML and Azure Pipelines. For more information, see Create your first pipeline.
- Permissions:
     - To create a pipeline: you must be in the Contributors group and the group needs to have Create build pipeline permission set to Allow. Members of the Project Administrators group can manage pipelines.
    - To create service connections: You must have the Administrator or Creator role for service connections.
GitHub - A GitHub account.
- A GitHub service connection to authorize Azure Pipelines.
Product Requirements
Azure DevOps - An Azure DevOps project.
- A self-hosted agent with Python 3.12 or other Python version installed. To create one, see Self-hosted agents.
- Basic knowledge of YAML and Azure Pipelines. For more information, see Create your first pipeline.
- Permissions:
    - To create a pipeline: you must be in the Contributors group and the group needs to have Create build pipeline permission set to Allow. Members of the Project Administrators group can manage pipelines.
    - To create service connections: You must have the Administrator or Creator role for service connections.
GitHub - A GitHub account.
- A GitHub service connection to authorize Azure Pipelines.

Important

GitHub procedures might require you to take one or more of the following actions in GitHub:

  • Sign in.
  • Authorize Azure Pipelines.
  • Authenticate to GitHub organizations.
  • Install the Azure Pipelines app.

Follow instructions to complete the required processes. For more information, see Access to GitHub repositories.

Fork the sample code

Fork the sample Python repository to your GitHub account.

  1. Go to the python-sample-vscode-flask-tutorial repository.
  2. Select Fork at upper right.
  3. Make sure your GitHub account name is selected under Owner, and select Create fork. The fork is named the same as the parent repository by default, but you can name it something different.

Create your pipeline

  1. In your Azure DevOps project, select Pipelines from the left navigation menu and then select New pipeline, or Create Pipeline if this pipeline is the first in the project.
  2. On the Where is your code screen, select GitHub as the ___location of your source code.
  3. On the Select a repository screen, select your forked Python sample repository.
  4. On the Configure your pipeline screen, select Starter pipeline.

Customize your pipeline

On the Review your pipeline YAML screen, replace the contents of the generated azure-pipelines.yml file with the following code. The code does the following actions on three different versions of Python:

  1. Installs required Python version and dependencies.
  2. Packages build artifacts to a ZIP archive.
  3. Publishes the archive to your pipeline.
  4. Runs tests.
trigger:
- main

pool:
  vmImage: ubuntu-latest

strategy:
  matrix:
    Python310:
      python.version: '3.10'
    Python311:
      python.version: '3.11'
    Python312:
      python.version: '3.12'

steps:
  - task: UsePythonVersion@0
    inputs:
      versionSpec: '$(python.version)'
    displayName: 'Use Python $(python.version)'

  - script: |
      python -m pip install --upgrade pip
      pip install -r requirements.txt
    displayName: 'Install dependencies'

  - task: ArchiveFiles@2
    displayName: 'Archive files'
    inputs:
      rootFolderOrFile: $(System.DefaultWorkingDirectory)
      includeRootFolder: false
      archiveType: zip
      archiveFile: $(Build.ArtifactStagingDirectory)/$(Build.BuildId)-$(python.version).zip
      replaceExistingArchive: true

  - task: PublishBuildArtifacts@1
    inputs:
      PathtoPublish: '$(Build.ArtifactStagingDirectory)'
      ArtifactName: 'drop'
      publishLocation: 'Container'

  - script: |
      pip install pytest pytest-azurepipelines
      pytest
    displayName: 'pytest'

On the Review your pipeline YAML screen, replace the contents of the generated azure-pipelines.yml file with the following code. The code does the following actions:

  1. Installs required Python version and dependencies.
  2. Packages build artifacts to a ZIP archive.
  3. Publishes the archive to your pipeline.
  4. Runs tests.

Customize azure-pipelines.yml to match your project configuration.

  • If you have a different agent pool, replace the pool name placeholder with your pool name or default.
  • If necessary, change the Python versionSpec to a version installed on your self-hosted agent.
  trigger:
  - main

  pool:
    name: '<your-pool-name or default>'

  steps:
  - task: UsePythonVersion@0
    inputs:
      versionSpec: '3.12'
    displayName: 'Use Python 3.12'

  - script: |
      python -m pip install --upgrade pip
      pip install -r requirements.txt
    displayName: 'Install dependencies'


  - task: ArchiveFiles@2
    displayName: 'Archive files'
    inputs:
      rootFolderOrFile: $(System.DefaultWorkingDirectory)
      includeRootFolder: false
      archiveType: zip
      archiveFile: $(Build.ArtifactStagingDirectory)/$(Build.BuildId).zip
      replaceExistingArchive: true

  - task: PublishBuildArtifacts@1
    inputs:
      PathtoPublish: '$(Build.ArtifactStagingDirectory)'
      ArtifactName: 'drop'
      publishLocation: 'Container'

  - script: |
      pip install pytest pytest-azurepipelines
      pytest
    displayName: 'pytest'

Run your pipeline

Select Save and run, and then select Save and run again. You can select Job on the Summary screen to see your job in action.

The job runs three times, once for each specified Python version. The three versions can run in parallel on different agents.

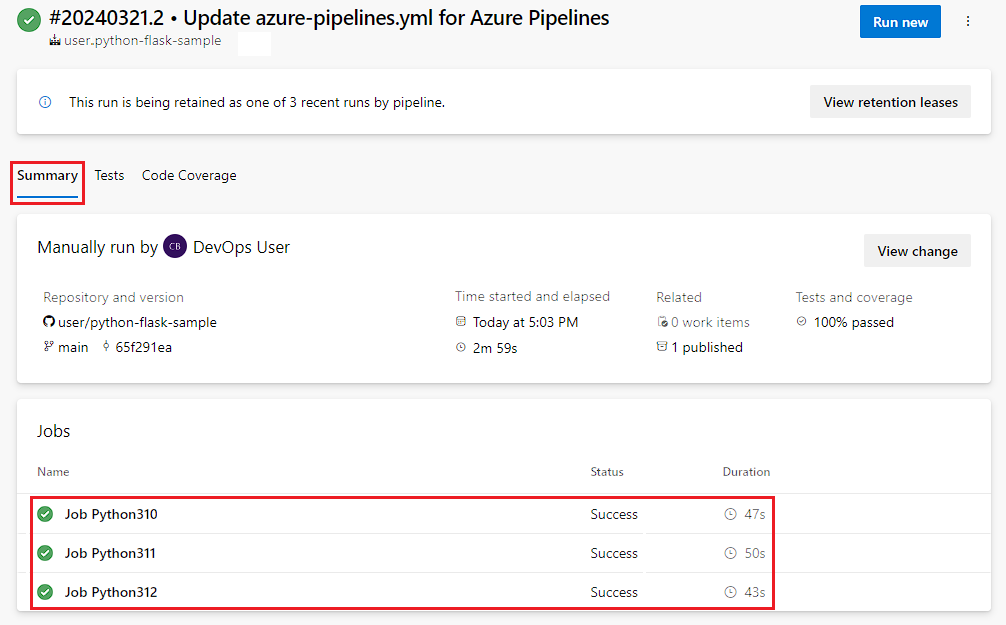

Screenshot of completed Python job with multiple versions.

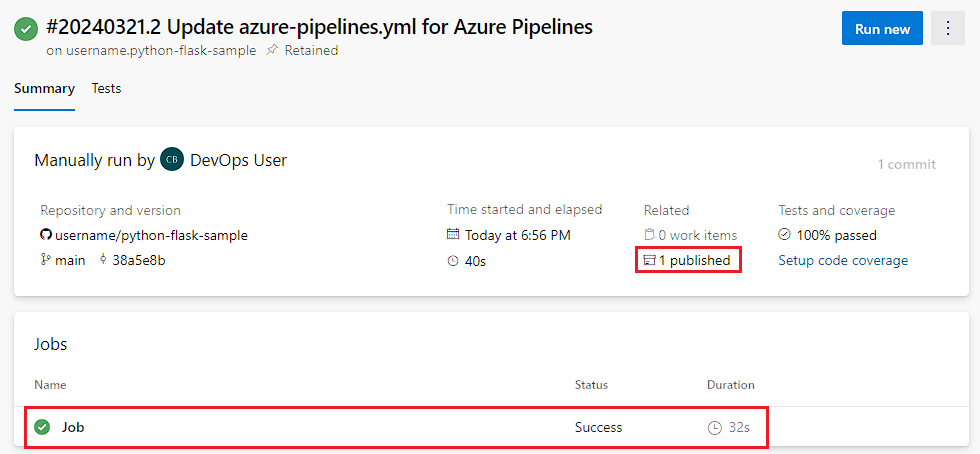

Screenshot of completed single Python job.

View artifacts and test results

To view your build artifacts, select the [N] published link on the Summary tab.

Screenshot of published build artifacts link.

The Artifacts page shows the published build artifacts.

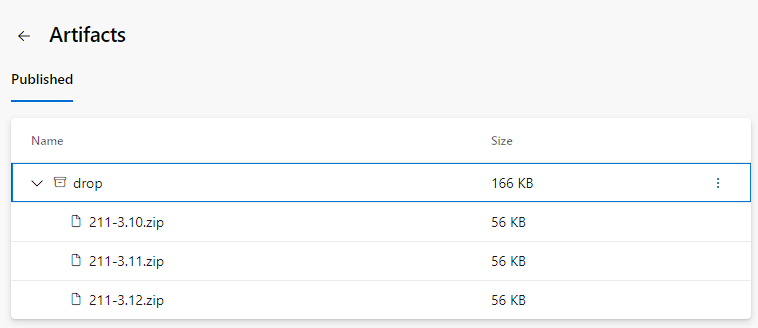

Screenshot of published build artifacts.

Screenshot of published build artifacts for a single job.

To view the test results, select the Tests tab.

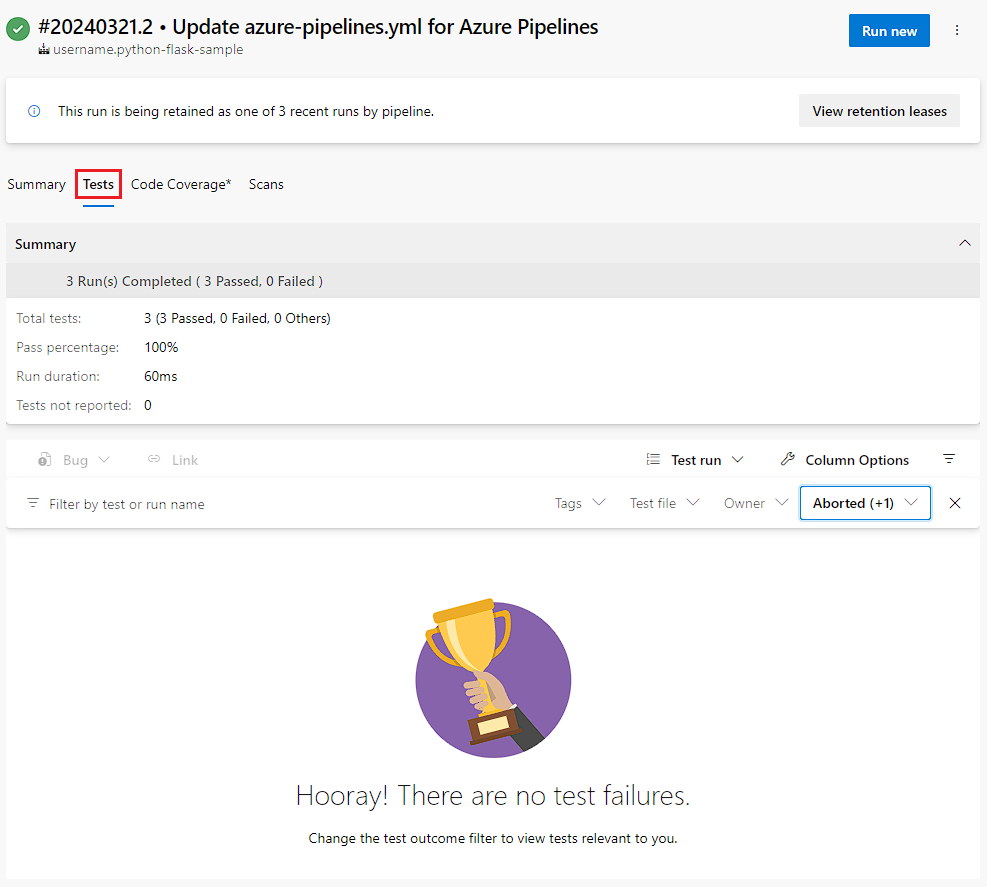

Screenshot of pipeline test results.

Clean up

If you're done using the pipeline you created, you can delete it.

  1. Select Pipelines from your project's left navigation menu.

  2. In the pipeline list, hover over the pipeline you created, select the More actions icon at right, and then select Delete.

    Or select the pipeline, and on the pipeline page, select the More actions icon at upper right, and then select Delete.

  3. Enter the pipeline name, and then select Delete again.

You successfully created and ran a pipeline that built and tested a Python app. You can now use Azure Pipelines to build, test, and deploy Python apps and scripts as part of your CI/CD process.

Next step

Use CI/CD to deploy a Python web app to Azure App Service.
