Popup

Popups are a very common way of presenting information to a user that relates to their current task. Operating systems provide a way to show a message and require a response from the user, these alerts are typically restrictive in terms of the content a developer can provide and also the layout and appearance.

The Popup view allows developers to build their own custom UI and present it to their users.

Building a Popup

A Popup can be created in XAML or C#:

XAML

Including the XAML namespace

In order to use the toolkit in XAML the following xmlns needs to be added into your page or view:

xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"

Therefore the following:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml">

</ContentPage>

Would be modified to include the xmlns as follows:

<ContentPage
    x:Class="CommunityToolkit.Maui.Sample.Pages.MyPage"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit">

</ContentPage>

Defining your Popup

Please note that if a Popup is created in XAML it must have a C# code behind file as well. To understand why this is required please refer to this .NET MAUI documentation page.

The easiest way to create a Popup is to add a new .NET MAUI ContentView (XAML) to your project and then change each of the files to the following:

<toolkit:Popup xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
               xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
               xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
               x:Class="MyProject.SimplePopup">

    <VerticalStackLayout>

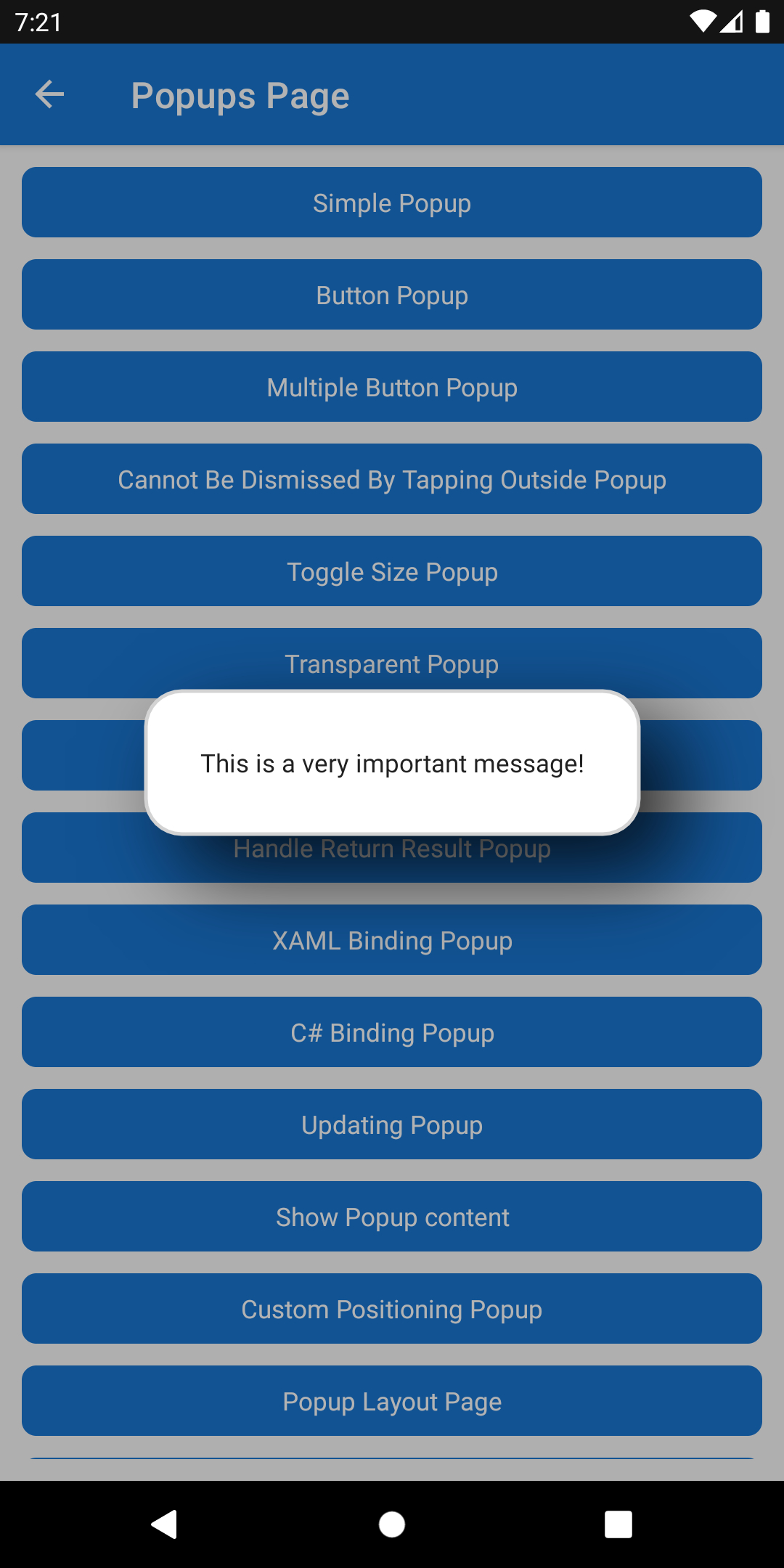

        <Label Text="This is a very important message!" />
    </VerticalStackLayout>

</toolkit:Popup>

public partial class SimplePopup : Popup
{
    public SimplePopup()
    {
        InitializeComponent();
    }
}

C#

using CommunityToolkit.Maui.Views;

var popup = new Popup
{
    Content = new VerticalStackLayout
    {
        Children =
        {
            new Label
            {
                Text = "This is a very important message!"
            }
        }
    }
};

Presenting a Popup

Once the Popup has been built it can then be presented through the use of our Popup extension methods or through the IPopupService implementation from this toolkit.

using CommunityToolkit.Maui.Views;

public class MyPage : ContentPage
{
    public void DisplayPopup()
    {
        var popup = new SimplePopup();

        this.ShowPopup(popup);
    }
}

Closing a Popup

There are 2 different ways that a Popup can be closed; programmatically or by tapping outside of the popup.

Programmatically closing a Popup

In order to close a Popup a developer must call Close or CloseAsync on the Popup itself. This is typically performed by responding to a button press from a user.

We can enhance the previous XAML example by adding an OK Button:

<toolkit:Popup xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
               xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
               xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
               x:Class="MyProject.SimplePopup">

    <VerticalStackLayout>
        <Label Text="This is a very important message!" />
        <Button Text="OK"
                Clicked="OnOKButtonClicked" />
    </VerticalStackLayout>

</toolkit:Popup>

In the resulting event handler we call Close, this will programmatically close the Popup.

public partial class MySimplePopup : Popup
{
    // ...

    void OnOKButtonClicked(object? sender, EventArgs e) => Close();
}

In the resulting event handler we call CloseAsync, this will programmatically close the Popup allowing the caller to await the method until the operating system has dismissed the Popup from the screen.

public partial class MySimplePopup : Popup
{
    // ...

    async void OnOKButtonClicked(object? sender, EventArgs e)
    {
        var cts = new CancellationTokenSource(TimeSpan.FromSeconds(5));

         await CloseAsync(token: cts.Token);
         await Toast.Make("Popup Dismissed By Button").Show();
    }
}

Tapping outside of the Popup

By default a user can tap outside of the Popup to dismiss it. This can be controlled through the use of the CanBeDismissedByTappingOutsideOfPopup property. Setting this property to false will prevent a user from being able to dismiss the Popup by tapping outside of it.

Returning a result

A developer will quite often seek a response from their user, the Popup view allows developers to return a result that can be awaited for and acted on.

We can enhance our original XAML example to show how this can be accomplished:

XAML

By adding 2 new buttons to the XAML:

<toolkit:Popup xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
               xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
               xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
               x:Class="MyProject.SimplePopup">

    <VerticalStackLayout>
        <Label Text="This is a very important message! Do you agree?" />
        <Button Text="Yes"
                Clicked="OnYesButtonClicked" />
        <Button Text="No"
                Clicked="OnNoButtonClicked" />
    </VerticalStackLayout>

</toolkit:Popup>

Then adding the following event handlers in the C#:

async void OnYesButtonClicked(object? sender, EventArgs e)
{
    var cts = new CancellationTokenSource(TimeSpan.FromSeconds(5));
    await CloseAsync(true, cts.Token);
}

async void OnNoButtonClicked(object? sender, EventArgs e)
{
    var cts = new CancellationTokenSource(TimeSpan.FromSeconds(5));
    await CloseAsync(false, cts.Token);
}

The Close method allows for an object value to be supplied, this will be the resulting return value. In order to await the result the ShowPopupAsync method must be used as follows:

using CommunityToolkit.Maui.Views;

public class MyPage : ContentPage
{
    public async Task DisplayPopup()
    {
        var popup = new SimplePopup();

        var result = await this.ShowPopupAsync(popup, CancellationToken.None);

        if (result is bool boolResult)
        {
            if (boolResult)
            {
                // Yes was tapped
            }
            else
            {
                // No was tapped
            }
        }
    }
}

Styling

The Popup class allows the use of .NET MAUI Styles to make it easier to share common visual settings across multiple popups.

The following example shows how to define a style that applies to the SimplePopup example from the previous section.

<toolkit:Popup xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
               xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
               xmlns:toolkit="http://schemas.microsoft.com/dotnet/2022/maui/toolkit"
               xmlns:popups="clr-namespace:CommunityToolkit.Maui.Sample.Views.Popups"
               x:Class="MyProject.SimplePopup">

    <toolkit:Popup.Resources>
        <Style TargetType="{x:Type popups:SimplePopup}">
            <Setter Property="Size" Value="100,200" />
            <Setter Property="Color" Value="Green" />
            <Setter Property="HorizontalOptions" Value="Center" />
            <Setter Property="VerticalOptions" Value="Start" />
            <Setter Property="CanBeDismissedByTappingOutsideOfPopup" Value="True" />
        </Style>
    </toolkit:Popup.Resources>

    <VerticalStackLayout>
        <Label Text="This is a very important message! Do you agree?" />
        <Button Text="Yes"
                Clicked="OnYesButtonClicked" />
        <Button Text="No"
                Clicked="OnNoButtonClicked" />
    </VerticalStackLayout>

</toolkit:Popup>

Properties

Events

Examples

You can find an example of this feature in action in the .NET MAUI Community Toolkit Sample Application.

API

You can find the source code for Popup over on the .NET MAUI Community Toolkit GitHub repository.
