Create measures with measure builder

Measure builder lets you define calculations using math operators, aggregation functions, and filters. Define measures using attributes from tables that are related to the unified Customer table.

Measure types

There are three types of measures that can be created in four different ways:

  • Customer attribute: Generates output as a new attribute, which gets saved as a new column in the system-generated table named Customer_Measure. When refreshing a customer attribute, all the other customer attributes in the Customer_Measure table refresh simultaneously. In addition, customer attributes are shown in the customer profile card. Once run or saved, you can't change a customer attribute to a customer measure. Customer attribute measures have a direct relationship to the unified customer profile.

  • Customer measure: Generates output as its own table named after the name of the measure you define. You can't change it to a customer attribute once run or saved. Customer measures don't show in the customer profile card. Customer measures have a direct relationship to the unified customer profile.

    You can also create a customer measure - table that can be used in Customer Insights - Journeys and other Dataverse applications.

  • Business measure: Generates output as its own table and shows on the home page of your Dynamics 365 Customer Insights - Data environment. Business measures don't have a direct relationship to individual customer profiles. Business measures look across all customer profiles or are grouped by another attribute. For example, a calculation for all customers in a specific state.

The following table provides key points about the different measure types. The dimension, CustomerId is the unique profile identifier from the Customer table.

Key points Customer attribute Customer measure Customer measure table - For use in Journeys and other Dynamics 365 apps Business measure
Definition A single value calculated per unique profile. A single value or multiple values calculated per unique profile and split by one or more dimensions. A single value or multiple values calculated per unique profile. A value calculated without a direct link to a unique profile, optionally split by one or more dimensions.
Dimensions CustomerId only CustomerId and more CustomerId only 0 or more except CustomerId
# of calculations/attributes in the measure A single calculation/attribute. A single or multiple calculations/attributes with CustomerId + at least 1 other dimension. A single or multiple calculations/attributes with CustomerId dimension. A single calculation/attribute with no dimension or a single or multiple calculations/attributes with at least 1 dimension that isn't the CustomerId.
Table All customer attributes are stored in a table called Customer_Measure where the first column is CustomerId and 1 column for each added Customer attribute. Stored in its own dedicated table Stored in its own dedicated table Stored in its own dedicated table
Displays on Customer card Yes No No No
Available as elastic table in Dataverse Yes (a different format than the Customer_Measure table and not readily usable in other Dynamics 365 apps) No Yes No
Refresh Refresh of a customer attribute results in refresh of all the customer attributes in the instance Can be refreshed on its own Can be refreshed on its own Can be refreshed on its own

Create a build-your-own measure

  1. Go to Insights > Measures.

  2. Select New > Build your own.

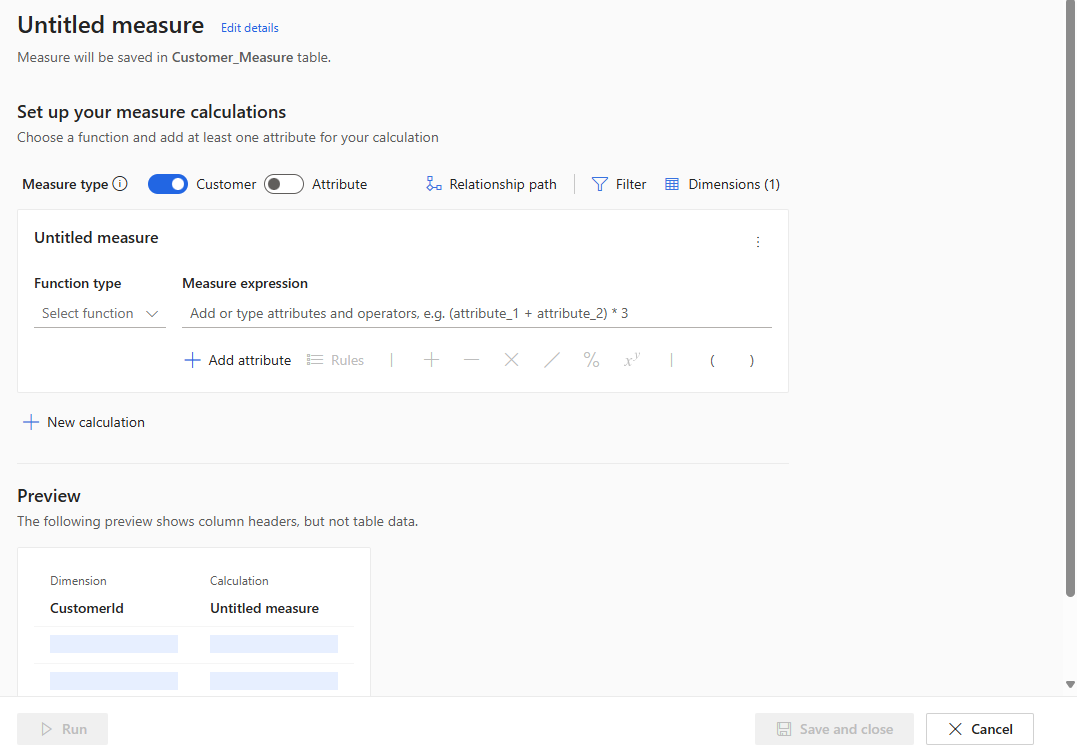

    Empty configuration screen for a measure.

  3. Select Edit details next to Untitled measure. Provide a name for the measure. Optionally, add tags to the measure.

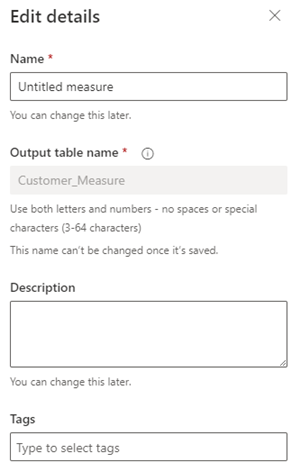

    Edit details dialog box.

  4. Select Done.

  5. Select the Measure type.

  6. In the configuration area, choose the aggregation function from the Select function dropdown menu. Aggregation functions include:

    • Sum
    • Average
    • Count
    • Count Unique
    • Max
    • Min
    • First: takes the first value of the data record
    • Last: takes the last value that was added to the data record
    • ArgMax: finds the data record giving the maximum value from a target function
    • ArgMin: finds the data record giving the minimum value from a target function

  7. Select Add attribute to select the data to create this measure.

    1. Select the Attributes tab.
    2. Data table: Choose the table that includes the attribute you want to measure.
    3. Data attribute: Choose the attribute you want to use in the aggregation function to calculate the measure. You can only select one attribute at a time.
    4. Optionally, choose a data attribute from an existing measure by selecting the Measures tab, or search for a table or measure name.
    5. Select Add.

  8. To build more complex measures, add more attributes or use math operators on your measure function.

  9. To add filters, select the Filter in the configuration area. Applying filters will only use the records that match the filters to calculate the measure.

    1. In the Add attribute section of the Filters pane, select the attribute you want to use to create filters.
    2. Set the filter operators to define the filter for every selected attribute.
    3. Select Apply.

  10. Select Dimension to choose more fields to add as columns to the measure output table.

    1. Select Edit dimensions to add data attributes you want to group the measure values by. For example, city or gender.

      Tip

      If you selected Customer as the Measure type, the CustomerId attribute is already added. If you remove the attribute, Measure type toggles to Business.

    2. Select Done.

  11. If there are values in your data that must be replaced with an integer, select Rules. Configure the rule and make sure that you choose only whole numbers as replacements. For example, replace null with 0.

  12. If there are multiple paths between the data table you mapped and the Customer table, choose one of the identified table relationship paths. Measure results can vary depending on the selected path.

    1. Select Relationship path and choose the table path that should be used to identify your measure. If there's only a single path to the Customer table, this control doesn't show.
    2. Select Done.

  13. To add more calculations for the measure, select New calculation. Only use tables on the same path for new calculations. More calculations show as new columns in the measure output table. Optionally, select Edit name to create a name for the calculation.

  14. Select the vertical ellipsis (⋮) on the calculation to Duplicate or Remove a calculation from a measure.

  15. In the Preview area, you can see the data schema of the measure output table, including filters and dimensions. The preview reacts dynamically to changes in the configuration.

  16. Select Run to calculate results for the configured measure. Select Save and close if you want to keep the current configuration and run the measure later. The Measures page displays.
