Vertica database

  • Article

Summary

Item Description
Release State General Availability
Products Power BI (Semantic models)
Power BI (Dataflows)
Fabric (Dataflow Gen2)
Authentication Types Supported Database
Function Reference Documentation —

Note

Some capabilities may be present in one product but not others due to deployment schedules and host-specific capabilities.

Capabilities Supported

  • Import
  • DirectQuery (Power BI semantic models)

Connect to a Vertica database from Power Query Desktop

Note

Since April 2025 version of Power BI Desktop, the Use user-installed Vertica ODBC driver option is enabled by default, so that you need to install the ODBC driver on your machine to use the Vertica database connector in Power BI Desktop. If you would like to revert to the old built-in driver experience, you may deselect the option in "Options and settings".

To connect to an Vertica database, take the following steps:

  1. Select Get Data from the Home ribbon in Power BI Desktop.

  2. Select Database from the categories on the left, select Vertica on the right, and then select Connect.

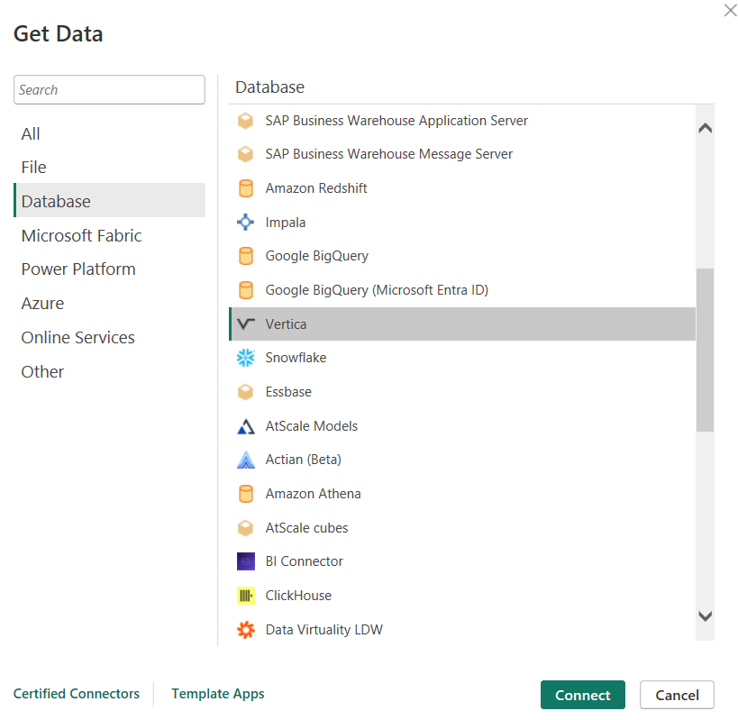

    Image of the Get Data dialog with the Database category and Vertica connector selected.

  3. In the Vertica window that appears, type or paste the name of your Vertica server into the box. You can Import data directly into Power BI or you can use DirectQuery. Learn more about using DirectQuery. Then select OK.

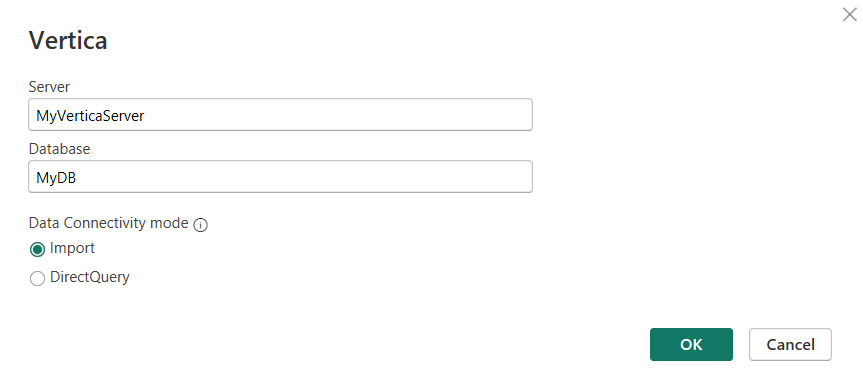

    Image of the Vertica dialog with a Server name entered and the Import data connectivity mode selected.

  4. When prompted, enter your credentials. The Vertica connector supports Database (user name and password) authentication.

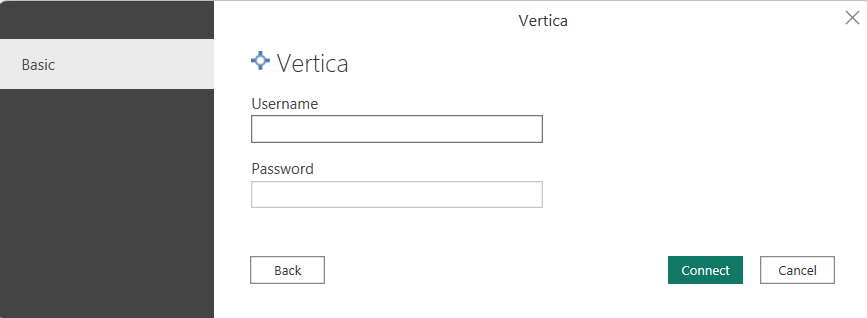

    Image of the authentication dialog with Database authentication configuration.

    For more information about authentication methods, go to Authentication with a data source.

  5. After you connect, a Navigator window appears and displays the data that's available on the server. Either select Load to load the data or Transform Data to continue transforming the data in the Power Query editor.

Connect to a Vertica database from Power Query Online

Note

Since May 2025 version of on-premises data gateway, the Use user-installed Vertica ODBC driver option is enabled by default, so that you need to install the ODBC driver on your gateway machine to use the Vertica database connector. If you need to revert to the old built-in driver experience, you can update the gateway configuration setting.

To connect to an Vertica database, take the following steps:

  1. Select the Vertica option in the connector selection.

  2. In Connect to data source, provide the name of the server.

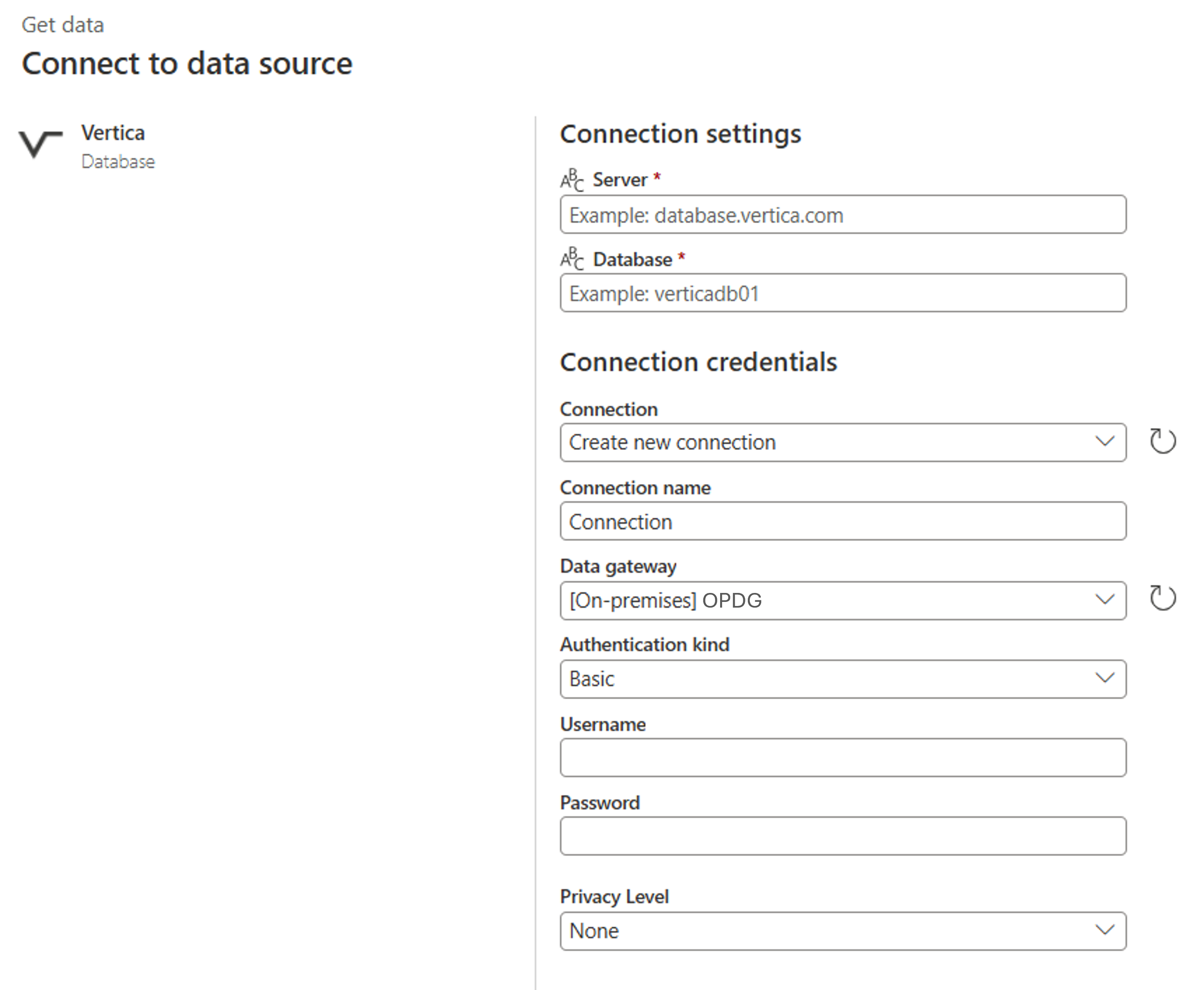

    Enter the Vertica database online connection.

  3. Select the name of your on-premises data gateway.

  4. If this is the first time you're connecting to this Vertica database, configure the user name and password for the Basic authentication.

  5. Select Next to continue.

  6. In Navigator, select the data you require, then select Transform data to transform the data in the Power Query editor.

Use Vertica ODBC driver (Preview)

The Vertica connector includes a built-in driver for connectivity by default. Starting from the February 2025 version of Power BI Desktop and the on-premises data gateway, there is an additional option to use the user-installed Vertica ODBC driver to connect to the Vertica database, currently available in preview. This enables you to utilize the native client tool provided by the data source.

Install the Vertica ODBC driver

To install the driver on the machine running Power BI Desktop or the on-premises data gateway, follow these steps:

  1. Download the Windows version of Vertica ODBC driver from Client Drivers.

  2. Open the downloaded .exe to begin the installation process.

  3. Select ODBC driver under Vertica Component List, then select Next to start the installation.

    Screenshot of installing the Vertica ODBC driver on local machine.

Use Vertica ODBC driver in Power BI Desktop

To use the user-installed Vertica ODBC driver in Power BI Desktop, navigate to Options and settings (under the File tab) > Options > Preview features, and then select the checkbox to enable the Use user-installed Vertica ODBC driver option.

Since April 2025 version of Power BI Desktop, the Use user-installed Vertica ODBC driver option is enabled by default, so that you need to install the ODBC driver on your machine to use the Vertica database connector in Power BI Desktop. If you need to revert to the old built-in driver experience, you may deselect this option in options and settings.

Use Vertica ODBC driver in on-premises data gateway

Since May 2025 version of on-premises data gateway, you need to install the Vertica ODBC driver on your gateway machine to use the Vertica database connector which provides the latest capability.

If you need to change the driver to use, you can update the value of the corresponding feature name in the gateway configuration file.

On-premises data gateway version Feature name Description
May 2025 onwards MashupUseEmbeddedVerticaODBCDriver Setting that determines which driver to use:
- False (default): Use the user-installed Vertica ODBC driver.
- True: Use the built-in Vertica driver.
February, March and April 2025 UserInstalledVerticaODBCDriver Setting that determines which driver to use:
- False (default): Use the built-in Vertica driver.
- True: Use the user-installed Vertica ODBC driver.
Earlier versions - Always use the built-in Vertica driver.

To change the configuration, using the following steps:

  1. On the local machine where the on-premises data gateway is installed, navigate to C:\Program Files\On-premises data gateway.
  2. Make a backup of the configuration file named Microsoft.PowerBI.DataMovement.Pipeline.GatewayCore.dll.config.
  3. Open the original Microsoft.PowerBI.DataMovement.Pipeline.GatewayCore.dll.config configuration file and locate the feature name entry as specified in the table above, corresponding to your gateway version.
  4. Update the value for the feature name.
  5. Restart your gateway.

Example of using the built-in driver in May 2025 version of on-premises data gateway:

<Microsoft.PowerBI.DataMovement.Pipeline.GatewayCore.GatewayCoreSettings>
   ...
   <setting name="MashupUseEmbeddedVerticaODBCDriver" serializeAs="String">
	   <value>True</value>
   </setting>
   ...
</Microsoft.PowerBI.DataMovement.Pipeline.GatewayCore.GatewayCoreSettings>

The remaining configurations to connect to a Vertica database from Power Query Desktop or Power Query Online are the same as described in the previous sections.
