Microsoft Exchange Server 2007 will reach end of support on April 11, 2017. To stay supported, you will need to upgrade. For more information, see Resources to help you upgrade your Office 2007 servers and clients.
Applies to: Exchange Server 2007, Exchange Server 2007 SP1, Exchange Server 2007 SP2, Exchange Server 2007 SP3
An accepted ___domain is any Simple Mail Transfer Protocol (SMTP) namespace for which a Microsoft Exchange organization sends or receives e-mail. Accepted domains include those domains for which the Exchange organization is authoritative. An Exchange organization is authoritative when it handles mail delivery for recipients in the accepted ___domain. Accepted domains also include domains for which the Exchange organization receives mail and then relays it to an e-mail server that is outside the Active Directory directory service forest for delivery to the recipient.
Configuring Accepted Domains
Accepted domains are configured as global settings for the Exchange organization and on computers that have the Edge Transport server role installed. The organizational settings require that all domains for which computers that have the Hub Transport server role installed process messages are configured as accepted domains. The Edge Transport server requires that all domains for which it accepts and relays messages are configured as accepted domains.
We recommend that you create and manage all accepted domains inside the organization and synchronize that information to the Edge Transport server by creating an Edge Subscription. When you subscribe the Edge Transport server to the Exchange 2007 organization, all accepted domains that are configured in the organizational settings for the Hub Transport server role are replicated to the Edge Transport server during EdgeSync synchronization. To modify the accepted ___domain configuration on an Edge Transport server that is subscribed to the Exchange 2007 organization, you must make the change on the Hub Transport server.
There are three types of accepted domains: authoritative, internal relay, and external relay. These accepted ___domain types are described in the following sections.
Authoritative Domains
An organization may have more than one SMTP ___domain. The set of e-mail domains for an organization are the authoritative domains. In Exchange 2007, an accepted ___domain is considered authoritative when the Exchange organization hosts mailboxes for recipients in this SMTP ___domain. The Edge Transport servers should always accept e-mail that is addressed to any of the organization's authoritative domains.
By default, when the first Hub Transport server role is installed, one accepted ___domain is configured as authoritative for the Exchange organization. The default accepted ___domain is the fully qualified ___domain name (FQDN) for your forest root ___domain. Frequently, the internal ___domain name differs from the external ___domain name. For example, your internal ___domain name may be ___domain.local, although your external ___domain name is ___domain.com. The ___domain name system (DNS) MX resource record for your organization references ___domain.com. Domain.com is the SMTP namespace that you assign to users when you create an e-mail address policy. You must create an accepted ___domain to match your external ___domain name.
By default, no accepted domains are configured on the Edge Transport server role.
Relay Domains
When e-mail is received from the Internet by an Edge Transport server and the recipient of the message is not a part of an authoritative ___domain, the sending server tries to relay through the Exchange server. When a server acts as a relay server that has no restrictions, it can put a large burden on Internet-connected servers. Administrators can prevent this open relay scenario by rejecting all e-mail that is not addressed to a recipient in the organization's authoritative domains. However, there are scenarios where an organization wants to let partners or subsidiaries relay e-mail through the Exchange servers. In Exchange 2007, you can configure accepted domains as relay domains. Your organization receives the e-mail and then relays the messages to another e-mail server.
You can configure a relay ___domain as an internal relay ___domain or as an external relay ___domain. These two relay ___domain types are described in the following sections.
Internal Relay Domain
When you configure an internal relay ___domain, some or all of the recipients in this ___domain do not have mailboxes in this Exchange organization. Mail from the Internet is relayed for this ___domain through Hub Transport servers in this Exchange organization. This configuration is used in the scenarios that are described in this section.
An organization may have to share the same SMTP address space between two or more different e-mail systems. For example, you may have to share the SMTP address space between Microsoft Exchange and a third-party e-mail system, or between Exchange environments that are configured in different Active Directory forests. In these scenarios, users in each e-mail system have the same ___domain suffix as part of their e-mail addresses.
To support these scenarios, you must create an accepted ___domain that is configured as an internal relay ___domain. You must also add a Send connector that is sourced on a Hub Transport server and configured to send e-mail to the shared address space. If an accepted ___domain is configured as authoritative and a recipient is not found in the Active Directory directory service, a non-delivery report (NDR) is returned to the sender. The accepted ___domain that is configured as an internal relay ___domain first tries to deliver to a recipient in the Exchange organization. If the recipient is not found, the message is routed to the Send connector that has the closest address space match.
If an organization contains more than one forest and has configured GAL synchronization, the SMTP ___domain for one forest may be configured as an internal relay ___domain in a second forest. Messages from the Internet that are addressed to recipients in internal relay domains are received and processed by the Edge Transport server and then relayed to the Hub Transport servers in the same organization. The receiving Hub Transport servers then route the messages to the Hub Transport servers in the recipient forest. You configure the SMTP ___domain as an internal relay ___domain to make sure that e-mail that is addressed to that ___domain is accepted by the Exchange organization. The connector configuration of your organization determines how messages are routed.
In Figure 1, FourthCoffee.com is configured as an internal relay ___domain for the Exchange 2007 organization in the Contoso.com forest. The MX resource records for FourthCoffee.com reference a public IP address for the Contoso.com organization. A forest trust exists between FourthCoffee.com and Contoso.com, and GAL synchronization is configured. The Contoso.com Edge Transport server accepts messages for the FourthCoffee.com SMTP ___domain from the Internet and then relays those messages to the Hub Transport servers in the Contoso.com Exchange organization. The messages are then routed to the Hub Transport servers in the FourthCoffee.com Exchange organization. A cross-forest Send connector is configured for routing messages from Contoso.com to FourthCoffee.com. Messages that are sent from FourthCoffee.com to external recipients are routed to the Hub Transport servers in the Contoso.com forest. A second cross-forest Send connector is configured for routing messages from FourthCoffee.com to Contoso.com. When the Hub Transport servers in Contoso.com receive messages from the internal relay ___domain FourthCoffee.com, they deliver messages for recipients in authoritative domains and relay messages for Internet recipients to the Edge Transport server for delivery.
Figure 1 Configuration of an internal relay ___domain
.gif "Configuration of Internal Relay Domain")
External Relay Domain
When you configure an external relay ___domain, messages are relayed to an e-mail server that is outside the Exchange organization and outside the organization's network perimeter. The messages are relayed by the Edge Transport server.
In this scenario, the MX resource record for the external relay ___domain references a public IP address the Exchange 2007 organization that is relaying messages. The Edge Transport server receives the messages for recipients in the external relay ___domain and then routes the messages to the e-mail system for the external relay ___domain. A Send connector from the Edge Transport server to the external relay ___domain is required in this scenario. The external relay ___domain may also use your organization's Edge Transport server as a smart host for outgoing mail.

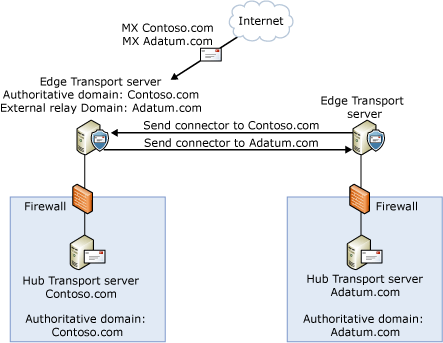

In Figure 2, Adatum.com is configured as an external relay ___domain for the Exchange 2007 organization in the Contoso.com forest. The MX resource record for Adatum.com references a public IP address for the Contoso.com organization. The Contoso.com Edge Transport server accepts messages for the Adatum.com SMTP ___domain from the Internet and then relays those messages to the e-mail servers in the Adatum.com organization. Adatum.com also uses the Contoso.com Edge Transport server as a smart host for routing outgoing messages. Messages that are sent from Adatum.com to external recipients are routed to the Edge Transport servers in the Contoso.com organization. When the Edge Transport servers in Contoso.com receive messages from Adatum.com, they deliver messages for recipients in authoritative domains and internal relay domains to the Hub Transport servers and route messages to the Internet.
Figure 2 Configuration of an external relay ___domain
.gif "Configuration of External Relay Domain")
Accepted Domains and E-Mail Address Policies
You must configure an accepted ___domain before that SMTP address space can be used in an e-mail address policy. When you create an accepted ___domain, you can use a wildcard character in the address space to indicate that all subdomains of the SMTP address space are also accepted by the Exchange organization. For example, to configure Contoso.com and all its subdomains as accepted domains, enter *.Contoso.com as the SMTP address space. The accepted ___domain entries are automatically available for use in an e-mail address policy.
If you delete an accepted ___domain that is used in an e-mail address policy, the policy is no longer valid, and recipients with e-mail addresses in that SMTP ___domain will be unable to send or receive e-mail.
