Exercise - Add parameters and variables to your Bicep file

In this exercise, you'll update the Bicep file you previously created so it:\

• Accepts parameters for the resource locations and names.
• Uses your business rules to select the right SKUs for the resources being deployed.

During the process, you'll:

Add the ___location and resource name parameters

1. In the main.bicep file in Visual Studio Code, add the following code to the top of the Bicep file:

   param ___location string = 'eastus'
   param storageAccountName string = 'toylaunch${uniqueString(resourceGroup().id)}'
   param appServiceAppName string = 'toylaunch${uniqueString(resourceGroup().id)}'

   var appServicePlanName = 'toy-product-launch-plan'


   The Bicep linter adds yellow squiggly lines underneath each parameter and variable name to indicate they're not used in the Bicep file. You'll fix this issue soon.

   Notice that you're using expressions that include string interpolation and the uniqueString() function to define default parameter values. Someone deploying this Bicep file can override the default parameter values by specifying the values at deployment time, but they can't override the variable values.

   Also notice that you're using a variable for the Azure App Service plan name, but you're using parameters for the other names. Storage accounts and App Service apps need globally unique names, but App Service plan names need to be unique only within their resource group. This difference means it's not a concern to use the same App Service plan name across different deployments, as long as the deployments are all going into different resource groups.

   Tip

   You're specifying that the ___location parameter should be set to westus3. Normally, you would create resources in the same ___location as the resource group by using the resourceGroup().___location property. But when you work with the Microsoft Learn sandbox, you need to use certain Azure regions that don't match the resource group's ___location.

2. Find the places within the resource definitions where the ___location and name properties are set, and update them to use the parameter values. After you're finished, the resource definitions within your Bicep file should look like this:

   resource storageAccount 'Microsoft.Storage/storageAccounts@2023-05-01' = {
     name: storageAccountName
     ___location: ___location
     sku: {
       name: 'Standard_LRS'
     }
     kind: 'StorageV2'
     properties: {
       accessTier: 'Hot'
     }
   }

   resource appServicePlan 'Microsoft.Web/serverfarms@2024-04-01' = {
     name: appServicePlanName
     ___location: ___location
     sku: {
       name: 'F1'
     }
   }

   resource appServiceApp 'Microsoft.Web/sites@2024-04-01' = {
     name: appServiceAppName
     ___location: ___location
     properties: {
       serverFarmId: appServicePlan.id
       httpsOnly: true
     }
   }


3. Save the changes to the file.

Automatically set the SKUs for each environment type

1. In the main.bicep file in Visual Studio Code, add the following Bicep parameter below the parameters that you created in the previous task:

   @allowed([
     'nonprod'
     'prod'
   ])
   param environmentType string


   Notice that you're defining a parameter with a set of allowed values, but you're not specifying a default value for this parameter.

2. Below the line that declares the appServicePlanName variable, add the following variable definitions:

   var storageAccountSkuName = (environmentType == 'prod') ? 'Standard_GRS' : 'Standard_LRS'
   var appServicePlanSkuName = (environmentType == 'prod') ? 'P2v3' : 'F1'


   Notice that you're setting these variables values by using the ternary operator to express some if/then/else logic.

3. Find the places within the resource definitions where the sku properties are set and update them to use the parameter values. After you're finished, the resource definitions in your Bicep file should look like this:

   resource storageAccount 'Microsoft.Storage/storageAccounts@2023-05-01' = {
     name: storageAccountName
     ___location: ___location
     sku: {
       name: storageAccountSkuName
     }
     kind: 'StorageV2'
     properties: {
       accessTier: 'Hot'
     }
   }

   resource appServicePlan 'Microsoft.Web/serverfarms@2024-04-01' = {
     name: appServicePlanName
     ___location: ___location
     sku: {
       name: appServicePlanSkuName
     }
   }

   resource appServiceApp 'Microsoft.Web/sites@2024-04-01' = {
     name: appServiceAppName
     ___location: ___location
     properties: {
       serverFarmId: appServicePlan.id
       httpsOnly: true
     }
   }


   Notice that you haven't parameterized everything. You've set some properties right in the resource definitions, where you know these values aren't going to change between deployments.

4. Save the changes to the file.

Verify your Bicep file

After you've completed all of the preceding changes, your main.bicep file should look like this example:

param ___location string = 'eastus'
param storageAccountName string = 'toylaunch${uniqueString(resourceGroup().id)}'
param appServiceAppName string = 'toylaunch${uniqueString(resourceGroup().id)}'

@allowed([
  'nonprod'
  'prod'
])
param environmentType string

var appServicePlanName = 'toy-product-launch-plan'
var storageAccountSkuName = (environmentType == 'prod') ? 'Standard_GRS' : 'Standard_LRS'
var appServicePlanSkuName = (environmentType == 'prod') ? 'P2v3' : 'F1'

resource storageAccount 'Microsoft.Storage/storageAccounts@2023-05-01' = {
  name: storageAccountName
  ___location: ___location
  sku: {
    name: storageAccountSkuName
  }
  kind: 'StorageV2'
  properties: {
    accessTier: 'Hot'
  }
}

resource appServicePlan 'Microsoft.Web/serverfarms@2024-04-01' = {
  name: appServicePlanName
  ___location: ___location
  sku: {
    name: appServicePlanSkuName
  }
}

resource appServiceApp 'Microsoft.Web/sites@2024-04-01' = {
  name: appServiceAppName
  ___location: ___location
  properties: {
    serverFarmId: appServicePlan.id
    httpsOnly: true
  }
}

If your file doesn't match, copy the example or adjust your file to match the example.

Deploy the updated Bicep file

az deployment group create \
  --name main \
  --template-file main.bicep \
  --parameters environmentType=nonprod

New-AzResourceGroupDeployment `
  -Name main `
  -TemplateFile main.bicep `
  -environmentType nonprod

Notice that you're explicitly specifying the value for the environmentType parameter when you execute the deployment. You don't need to specify the other parameter values, because they have valid default values.

Check your deployment

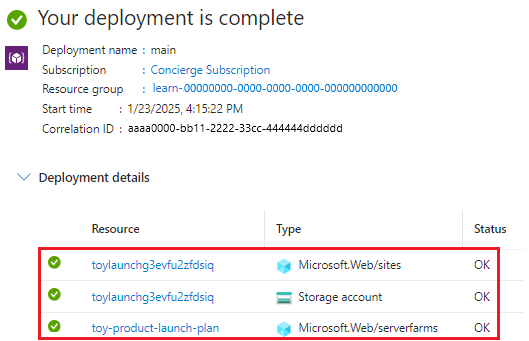

1. In your browser, go back to the Azure portal and go to your resource group. You'll still see one successful deployment, because the deployment used the same name as the first deployment.

2. Select the 1 Succeeded link.

3. Select the deployment called main, and then select Deployment details to expand the list of deployed resources.



4. Notice that a new App Service app and storage account have been deployed with randomly generated names.
