Using Emulator Express to run and debug an Azure Cloud Services (extended support) on a local machine

Note

This article applies to Azure Azure Cloud Services (extended support). This deployment model is retiring on March 31, 2027. For more information, see Azure updates.

Azure Cloud Services relies on connection strings for authentication in some cases, such as for storage accounts. Connection strings and passwords are inherently insecure due to the risk of unintended exposure or compromise. Microsoft recommends using managed identities for authentication, and services such as Service Fabric managed clusters.

By using Emulator Express, you can test and debug a cloud service without running Visual Studio as an administrator. You can set your project settings to use either Emulator Express or the full emulator, depending on the requirements of your cloud service. For more information about the full emulator, see Run an Azure Application in the Compute Emulator.

Using Emulator Express in Visual Studio

When you create an Azure project, Emulator Express is automatically used. For existing projects that were created with an earlier version of the Azure SDK, use the following steps to select Emulator Express:

  1. Create or open an Azure Cloud Services (extended support) project in Visual Studio.

  2. In Solution Explorer, right-click the project, and, from the context menu, select Properties.

  3. In the projects properties pages, select the Web tab.

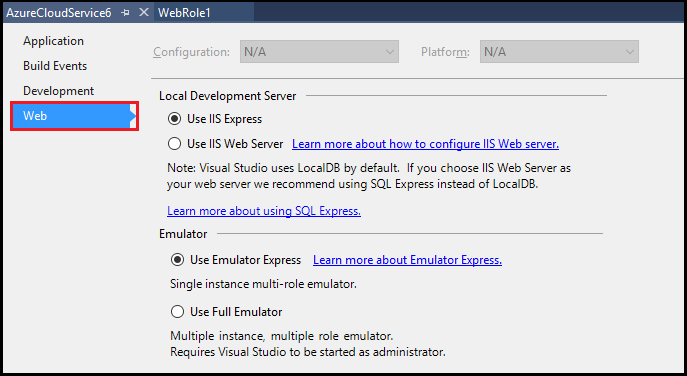

    Properties for an Azure Cloud Services (extended support) project

  4. Under Local Development Server, select Use Internet Information Services (IIS) Express option.

  5. Under Emulator, select Use Emulator Express.

  6. To launch the Emulator Express, run the following command at a command prompt:

    csrun.exe /useemulatorexpress

Emulator Express limitations

The following issues are known limitations of Emulator Express:

  • Emulator Express is not compatible with IIS Web Server.
  • Your cloud service can contain multiple roles, but each role is limited to one instance.
  • You can't access port numbers below 1000. If you use an authentication provider that normally uses a port below 1000, you might need to change this value to a port number that's above 1000.
  • Any limitations that apply to the Azure Compute Emulator also apply to Emulator Express. For example, you can't have more than 50 role instances per deployment. For more information about the Azure Compute Emulator, see Run an Azure Application in the Compute Emulator.

Debugging Azure Cloud Services (extended support)
