Decoder Interfaces

The following tables show the interfaces implemented by Windows Imaging Component (WIC) decoders, and the class diagram shows the inheritance hierarchy.

Container-Level Decoder Interfaces

Interface Responsibilities Implementation
IWICBitmapDecoder Container-level services Required
IWICBitmapCodecProgressNotification Progress notification & cancellation support Recommended
IWICMetadataBlockReader Metadata enumeration Optional (Required only for formats that support container-level metadata)



Frame-Level Decoder Interfaces

Interface Responsibilities Implementation
IWICBitmapFrameDecode Frame-level services Required
IWICMetadataBlockReader Metadata enumeration Required
IWICBitmapSourceTransform Native decoder transforms Recommended
IWICDevelopRaw Raw processing services Required for Raw formats only

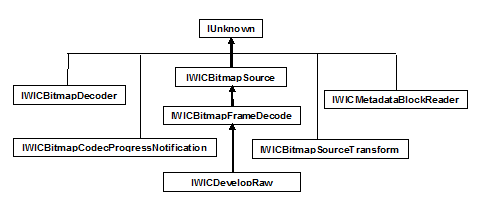

wic interface inheritance hierarchy
