Set up and configure the Supplier Communications Agent (production ready preview)

[This article is prerelease documentation and is subject to change.]

This article explains how system administrators can set up and configure the Supplier Communications Agent.

Video instructions

For video instructions on how to set up the Supplier Communications Agent, go to Supplier Communications Agent: Set up and Configure | Dynamics 365 Bites (video).

The remaining sections in this article provide the same instructions in a text-based format.

Prerequisites

Before you can use the Supplier Communications Agent, your system must meet the following requirements:

• You must be running Microsoft Dynamics 365 Supply Chain Management version 10.0.44 or later, with all available quality updates.

• The following features must be turned on in feature management. Select Check for updates if the features aren't shown on your system.

  • (Production ready Preview) Immersive Home
  • (Production ready preview) Agent management
  • (Production ready preview) Supplier Communications Agent

• In the Power Platform admin center, make sure you're running the following versions of the following Dynamics 365 Apps in your Supply Chain Management environment. It's important that you install or update them in the following order:

  • First, install (or update to) Copilot for finance and operations apps version 1.0.3048.2 or later.
  • Then, install (or update to) Copilot in Microsoft Dynamics 365 Supply Chain Management version 1.1.3046.2 or later.

• In the Power Platform admin center, make sure you are running the following versions of the following Dynamics 365 Apps in your Supply Chain Management environment. It's important that you install or update them in the following order:

  • First, install (or update to) Copilot for finance and operations apps version 1.0.3048.2 or later.
  • Then, install (or update to) Copilot in Microsoft Dynamics 365 Supply Chain Management version 1.1.3046.2 or later.

• Optional: If you want the agent to send emails automatically, turn on the (Preview) Send follow-up emails to vendors with Supplier Communications Agent - automatically sending emails feature in Feature management. We recommend that you turn off this feature for sandbox environments, where data such as purchase orders might not be up to date, or vendor email addresses might be missing.

Set up an agent identity

The Supplier Communications Agent interacts with Dataverse and Microsoft Copilot Studio to do its work. You must select the identity that is used for these interactions and create the required connections.

Set up agent identity users and assign security roles

Use the user management features for your tenant to create an agent identity user. Then assign the licenses and security roles described in the following subsections to that user.

License requirements

The Suppler Communications Agent utilizes premium tier connectors, so the agent identify user must have a license that permits those. Find more information in the Power Platform licensing FAQs or download the Licensing Guide.

Examples of sufficient licenses include Power Apps Premium, Power Automate Premium or Dynamics 365 Supply Chain Management.

Use the Microsoft 365 admin center to assign the required licenses.

Required security roles

Add the agent identity user both to the Dataverse environment and to Supply Chain Management. Assign the agent identify user the security roles shown in the following lists.

• Required Dataverse user roles:

  • Finance and Operation Basic User
  • Supplier Communications Agent
  • Environment Maker

• Required Supply Chain Management user roles:

  • (Preview) Supplier Communications Agent
  • System user

Create required connections and activate the triggering flows

1. Open the Power Apps Maker portal and sign in as an environment administrator user.

2. Use the Environment drop-down list in the page header to select the environment associated with your finance and operations apps.

3. In the left navigator, select Connections.

4. At the top of the page, select New connection.

5. Use the Search field at the right side of the page to find the connection with a Name of Microsoft Dataverse (if you see two, use the one with the green icon). Select Create for that row and follow the instructions on your screen. Sign in with the intended agent identity user when prompted.

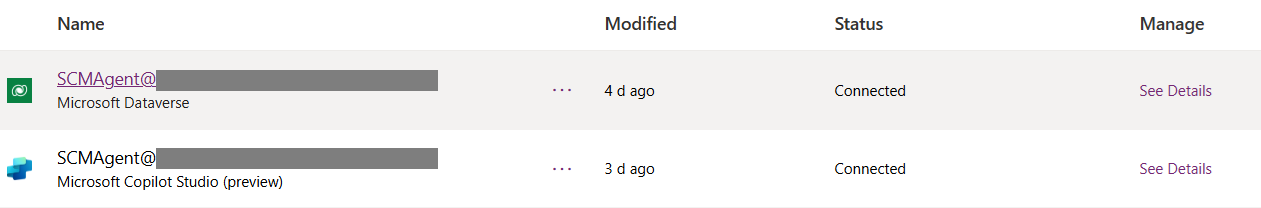

6. You return to the Connections list. Your new connector is now shown at the bottom of the list and is named after the agent identity you signed in with when creating it.

7. At the top of the page, select New connection.

8. Find the connection with a Name of Microsoft Copilot Studio (preview). Select Create for that row and follow the instructions on your screen. Sign in as the intended agent identity when prompted.

9. You return to the Connections list. Your new connector is now shown at the bottom of the list and is named after the agent identity you signed in with when creating it.



10. To finish setting up agent identity, you must update the agent's connection references so that they point to the connections that you created. You must also activate the triggering Power Automate flows. The section sample PowerShell script provides a sample PowerShell script that you can use to complete both tasks.

Assign permissions to users working with the agent

All Dynamics 365 Supply Chain Management users working with the agent must also be created as Dataverse users (if they aren't already). To learn how, go to Create users.

Additionally, they be assigned the roles described in the following subsections.

Permissions for users who manage the agent configuration

• Required Dataverse user roles:

  • Basic User
  • Finance and Operations Agent Configuration Manager
  • Finance and Operations Basic User

• Required Supply Chain Management user roles:

  • System user
  • Purchasing manager and/or Purchasing agent

Permissions for users who review agent results

• Required Dataverse user roles:

  • Basic User
  • Finance and Operations Basic User

• Required Supply Chain Management user roles:

  • System user
  • Purchasing agent

Synchronize mailboxes with Dataverse

To enable the email analysis and delivery features of the Supplier Communications Agent, you must set up targeted mailboxes so that they are synchronized with Dataverse at the server level.

Private mailbox

To set up a private mailbox, follow these steps.

1. Sign in to the Power Platform admin center as a user who has a system administrator security role. (Although users who don't have an administrator role can enable synchronization for their own mailboxes, administrator approval might be required.)
2. Select the environment that you want to set up.
3. On the command bar, select Settings.
4. On the Settings page, under Email, select Mailboxes.
5. On the Select a view dropdown menu at the top of the page, select Active Mailboxes.
6. Select the checkbox for each mailbox that you want to use with the Supplier Communications Agent.
7. On the command bar, select Test & enable mailbox to enable synchronization for the selected mailboxes.

After a private mailbox is set up, the user who owns it must update the personalization settings to specify that all emails should be tracked.

To enable tracking of all emails for a private mailbox that you own, follow these steps.

1. Go to the URL of your environment.
2. Select the Settings button (gear symbol) in the upper right, and then select Personalization Settings.
3. In the Set Personal Options dialog, on the Email tab, in the Track field, select All email messages.
4. Select OK.

Shared mailbox

If you're using a shared mailbox, create a queue so that all users who work on the shared mailbox can access email contents.

1. Sign in the Power Platform admin center as user who has a system administrator security role.

2. Select the environment that you want to set up.

3. On the command bar, select Settings.

4. On the Settings page, under Users + permissions, select Teams.

5. Select Create team.

6. In the New team dialog, specify a name, business unit, and administrator as required. Set the Team type field to Owner.

7. Select Next.

8. In the Add team members dialog, add all the users who should have access to the shared mailbox.

   Important

   All users who create an agent configuration and review agent results that are related to this mailbox must be added as team members.

9. Select Next.

10. In the Manage security roles dialog, select Finance and Operations Basic User and Basic User, and then select Save.

11. Return to the Settings page for your environment, and then, under Business section, select Queues.

12. Select New to create a Queue entity record.

13. Enter a name, set the Incoming email field to the email address of the shared mailbox, and set the Owner field to the team that you created earlier.

14. Select Save.

15. A mailbox should now be created in the Email settings section. Select the mailbox name.

16. On the command bar, select Test & Enable Mailboxes.

    Tip

    If this operation fails, review the Alerts section for the mailbox. If it includes an error message that states that approval is required, you must ask your global or Exchange admin to approve the mailbox. Learn more in Approve email.

17. Ensure that no other mailboxes that have the same email address are set up and active.

    1. Return to the Settings page for your environment.
    2. Under Email, select Mailboxes.
    3. On the Select a view dropdown menu at the top of the page, select Active Mailboxes.
    4. If any other mailboxes have the same email address as the shared mailbox email address, deactivate them.

Get detailed instructions in Set up server-side synchronization of email.

Troubleshooting

Issues with setting up Supplier Communications Agent

To solve issues that might occur when setting up the Supplier Communications Agent, go to FAQ and solving typical issues when setting up and configure the Supplier Communications Agent

Issues with server-side synchronization

Learn how to fix common issues that are related to server-side synchronization in Troubleshooting and monitoring.

Refresh data (optional)

After you enable the Supplier Communications Agent in a sandbox environment, we recommend that you do a data refresh. In this way, when you do testing in the sandbox environment, you can use the same data that you will have in the production environment. Learn how to do a database refresh in Refresh database.

Set your email address as a vendor contact for testing

When you use the review and apply purchase order changes received in vendor emails feature, the agent only reads emails from vendor domains. This means that when you are testing the system (and want to send/forward vendor emails from your own email account), you must add your email address as a vendor contact. To do so, follow these steps.

1. Go to Procurement and sourcing > Vendors > All vendors.
2. Create or select a vendor.
3. On the Contact information FastTab, add a row with your own email address (the one you will send/forward test messages from).

Update connection references and enable triggering flows by using a PowerShell script

This sample PowerShell script finishes setting up the agent identity by updating the connection references for the agent and activating the triggering Power Automate flows.

To use the sample PowerShell script, follow these steps.

1. Copy the script, and save it as a .ps1 file.

2. Before you run the script, enter values for the following four parameters at the top:

   • environmentId – Specify the ID of your Dataverse environment. You can find the ID in the Power Platform admin center.
   • dataverseUrl – Specify the URL of your Dataverse environment. You can find the URL in the Power Platform admin center. Include https:// in the URL.
   • DVConnectionName – Specify the name of the Dataverse connector to use. The connector is named after the agent identity that you signed in as when you created it. You can find the name on the Connections page in Power Apps.
   • MCSConnectionName – Specify the name of the Copilot Studio connector to use. The connector is named after the agent identity that you signed in as when you created it. You can find the name on the Connections page in Power Apps.

3. Customize the script as required.

4. Run the script from any PowerShell console or Visual Studio Code. If needed, follow the instructions to update your installed PowerShell to version 7. When you're prompted to sign in, sign in as an environment administrator.

Param(
   [Parameter(Mandatory=$true, HelpMessage="Dataverse environment id")]
   [string]$environmentId = "",

   [Parameter(Mandatory=$true, HelpMessage="Dataverse environment URL")]
   [string]$dataverseUrl = "",

   [Parameter(Mandatory=$true, HelpMessage="Microsoft Dataverse connection name")]
   [string]$DVConnectionName = "",

   [Parameter(Mandatory=$true, HelpMessage="Microsoft Copilot Studio connection name")]
   [string]$MCSConnectionName = ""
)

# Check PS version
if ($PSVersionTable.PSVersion.Major -lt 7) {
    Write-Error 'This script requires at least PowerShell version 7' -ErrorAction Stop
}

# Install the required modules if not already installed
if (-not (Get-Module -ListAvailable -Name Microsoft.PowerApps.PowerShell)) {
    Write-Warning -Message 'Installing module Microsoft.PowerApps.PowerShell'
    Install-Module -Name Microsoft.PowerApps.PowerShell -AllowClobber -Scope CurrentUser
}

# Install the required modules if not already installed
if (-not (Get-Module -ListAvailable -Name Az.Accounts | Where-Object Version -ge 2.17)) {
    Write-Warning -Message 'Installing required version of module Az.Accounts'
    Install-Module -Name Az.Accounts -AllowClobber -Scope CurrentUser -Force -MinimumVersion 2.17
}

# Import required modules
Import-Module Az.Accounts -MinimumVersion 2.17
Import-Module Microsoft.PowerApps.PowerShell

function Get-AccessToken {
    # Retrieve the access token for the Dataverse environment
    $accessToken = Get-AzAccessToken -ResourceUrl "$dataverseUrl" -AsSecureString
    $token = $accessToken.Token
    $userId = $accessToken.UserId
    Write-Host "Access token for $userId retrieved successfully." -ForegroundColor Green

    return $token
}

function Get-ConnectionId {
    param (
        [string]$userProvidedName,
        [string]$providerName
    )

    $matchedConnectionId = $null

    $connections = Get-PowerAppConnection -EnvironmentName $environmentId -ConnectorNameFilter $providerName
    foreach ($con in $connections) {
        if (($con.ConnectionName -eq $userProvidedName) -or ($con.DisplayName -eq $userProvidedName))
        {
            $matchedConnectionId = $con.ConnectionName
            break
        }
    }

    if ($null -eq $matchedConnectionId)
    {
        Write-Error -Message "Unable to find connection $userProvidedName ($providerName)" -ErrorAction Stop
    }

    Write-Host "Found connection id $matchedConnectionId for connection $userProvidedName"

    return $matchedConnectionId
}

function Get-ConnectionReferenceId {
    param(
        [string]$connectionReferenceLogicalName,
        [securestring]$accessToken
    )

    $uri = "$dataverseUrl/api/data/v9.2/connectionreferences?`$filter=connectionreferencelogicalname eq '$connectionReferenceLogicalName'"
    $response = Invoke-RestMethod -Method Get `
        -Uri $uri `
        -Authentication Bearer -Token $accessToken `
        -ContentType 'application/json'


    if ($null -eq $response) {
        Write-Error -Message "Connection reference not found for logical name $connectionReferenceLogicalName" -ErrorAction Stop
    }

    $connectionReferenceDisplayName = $response.value[0].connectionreferencedisplayname
    $connectionReferenceId = $response.value[0].connectionreferenceid

    Write-Host "Found connection reference id $connectionReferenceId for $connectionReferenceDisplayName ($connectionReferenceLogicalName)"

    return $connectionReferenceId
}

function Set-ConnectionReferenceConnection {
    param (
        [string]$connectionReferenceLogicalName,
        [string]$userProvidedConnectionName,
        [string]$providerName,
        [securestring]$accessToken
    )

    Write-Host "Updating connection reference ${connectionReferenceLogicalName}..."

    $connectionReferenceId = Get-ConnectionReferenceId -connectionReferenceLogicalName $connectionReferenceLogicalName -accessToken $accessToken
    $connectionId = Get-ConnectionId -userProvidedName $userProvidedConnectionName -providerName $providerName

    $body = @{
        "connectionid" = "$connectionId"
    } | ConvertTo-Json -Depth 1

    $uri = "$dataverseUrl/api/data/v9.2/connectionreferences($connectionReferenceId)"
    Write-Host "Updating connection reference URI: $uri with connection id $connectionId"

    Invoke-RestMethod -Method Patch `
        -Uri $uri `
        -Authentication Bearer -Token $accessToken `
        -ContentType 'application/json' `
        -Body $body

    Write-Host "Connection reference updated successfully." -ForegroundColor Green
    Write-Host
}

function ValidateUserEnvironment {
    param (
        [string]$environmentId
    )

    $env = Get-PowerAppEnvironment -EnvironmentName $environmentId
    if ($null -eq $env) {
        Write-Error -Message "Environment $environmentId was not found" -ErrorAction Stop
    }

    $displayName = $env.DisplayName
    Write-Host "Connected to environment: $displayName ($environmentId)"
}

function Enable-TriggerFlow {
    param (
        [string]$flowId,
        [securestring]$accessToken
    )

    $flowUri = "$dataverseUrl/api/data/v9.2/workflows($flowId)"
    $flow = $null

    Write-Host "Enabling flow $flowId with uri $flowUri"

    try {
        $flow = Invoke-RestMethod -Method Get `
            -Uri $flowUri `
            -Authentication Bearer -Token $accessToken `
            -ContentType 'application/json'
    }
    catch {
        Write-Error -Message $_.Exception -ErrorAction Stop
    }

    $displayName = $flow.name
    Write-Host "Activating flow $displayName for id $flowId"

    $body = @{
        "statecode" = 1  # Activated
        "statuscode" = 2 # Activated
    } | ConvertTo-Json -Depth 1 -Compress

    try {
        Invoke-RestMethod -Method Patch `
            -Uri $flowUri `
            -Authentication Bearer -Token $accessToken `
            -ContentType 'application/json' `
            -Body $body
    }
    catch {
        Write-Error -Message $_.Exception -ErrorAction Stop
    }

    Write-Host "Activated flow $displayName" -ForegroundColor Green
    Write-Host
}

# Actual script body

Write-Host
Write-Host "Authenticating interactively..."
Write-Host

Connect-AzAccount -UseDeviceAuthentication
$accessToken = Get-AccessToken
ValidateUserEnvironment -environmentId $environmentId

Write-Host
Write-Host 'Setting up connection references...'
Write-Host

Set-ConnectionReferenceConnection `
    -userProvidedConnectionName $DVConnectionName `
    -providerName "/providers/Microsoft.PowerApps/apis/shared_commondataserviceforapps" `
    -connectionReferenceLogicalName "new_sharedcommondataserviceforapps_6ae5d" `
    -accessToken $accessToken

Set-ConnectionReferenceConnection `
    -userProvidedConnectionName $MCSConnectionName `
    -providerName "/providers/Microsoft.PowerApps/apis/shared_microsoftcopilotstudio" `
    -connectionReferenceLogicalName "msdyn_sharedmicrosoftcopilotstudio_0be09" `
    -accessToken $accessToken

Write-Host
Write-Host 'Activating flows...'
Write-Host

Enable-TriggerFlow -flowId 'c1061034-ff20-f011-9989-002248095ade' -accessToken $accessToken # (Self Heal) Speed up updates in purchase orders with Supplier Communications Agent
Enable-TriggerFlow -flowId '1db577aa-83fe-ef11-bae1-000d3a34a571' -accessToken $accessToken # Speed up updates in purchase orders with Supplier Communications Agent
Enable-TriggerFlow -flowId 'acd7bb36-07a1-ef11-a72d-6045bd0390ae' -accessToken $accessToken # Send follow-up emails to vendors with Supplier Communications Agent

Write-Host
Write-Host 'Supplier communications agent is ready for use' -ForegroundColor Green
